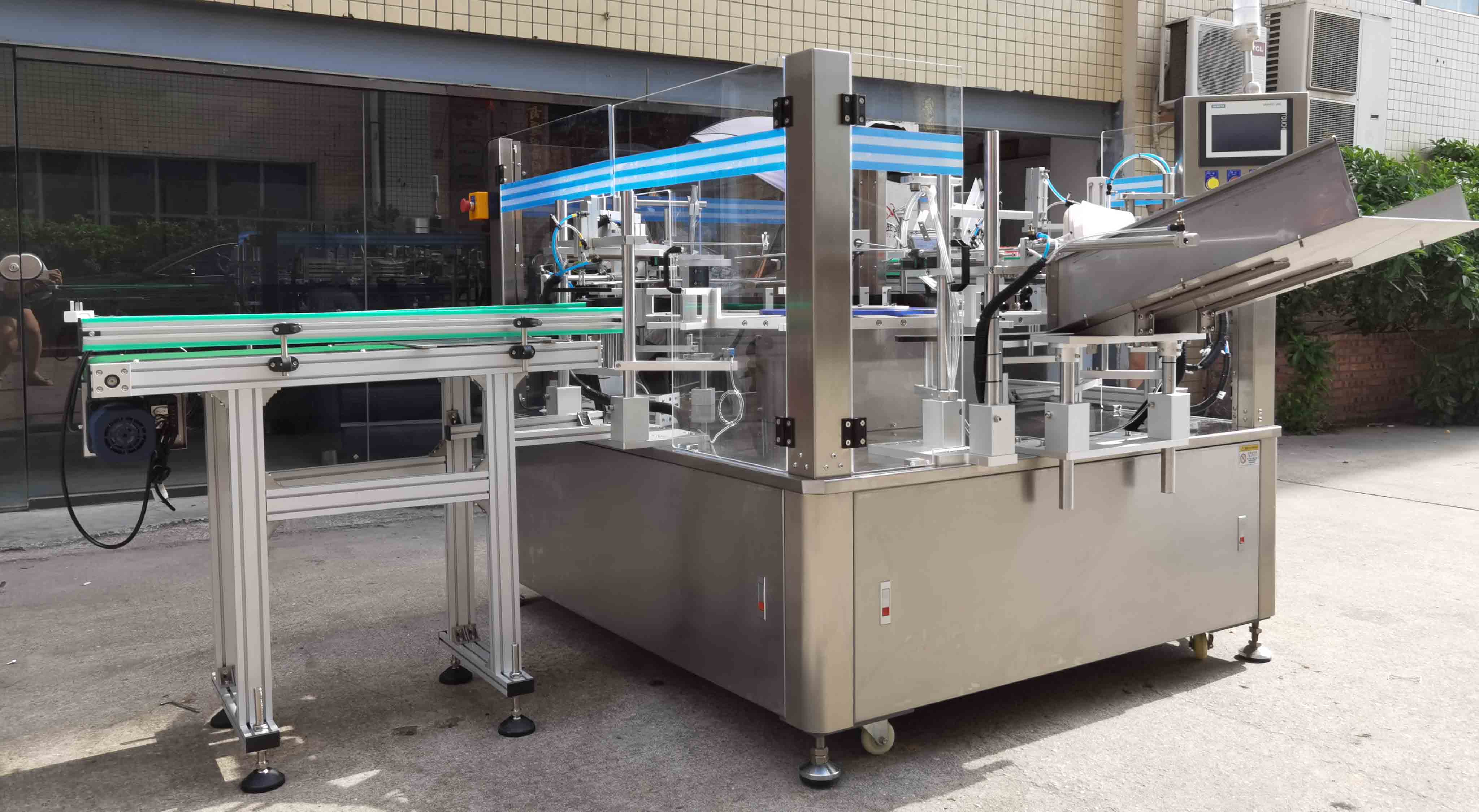

Vertical Rotary Semi Automatic Cartoner Box Carton Packing Machine

Machine Features

1. It is specially designed to pack products in cartons with variable sizes and small output.

2. With low cost and small area, it is suitable for cartons with various sizes. It is also a vertical cartoning machine with multiple functions. Time for mould change is pretty short.

3. 304 stainless steel cover.

4. Advanced PLC Control System, together with 5.7” color touch screen, can help set and change the parameters easily.

Working Process

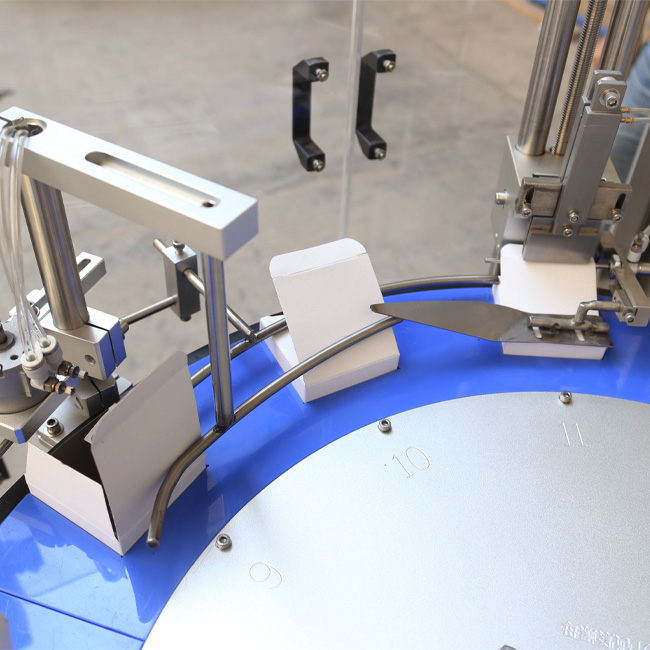

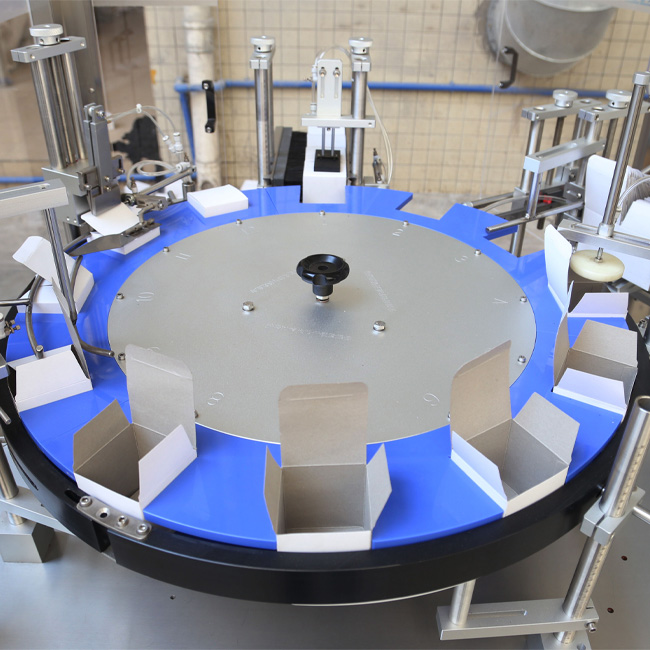

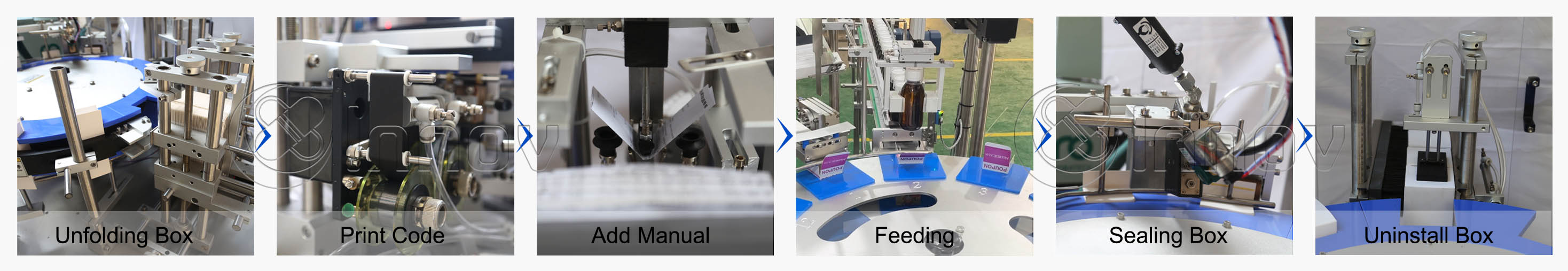

Suck cartons into the star-type wheel---Fold lower small flap of the carton---Fold the lower big flap---Tuck the lower big flap---products feeding into the box (manually or automatically)---Fold upper small flap of carton---Fold the upper big flap---Tuck the upper big flap---Discharge end products

Machine Application

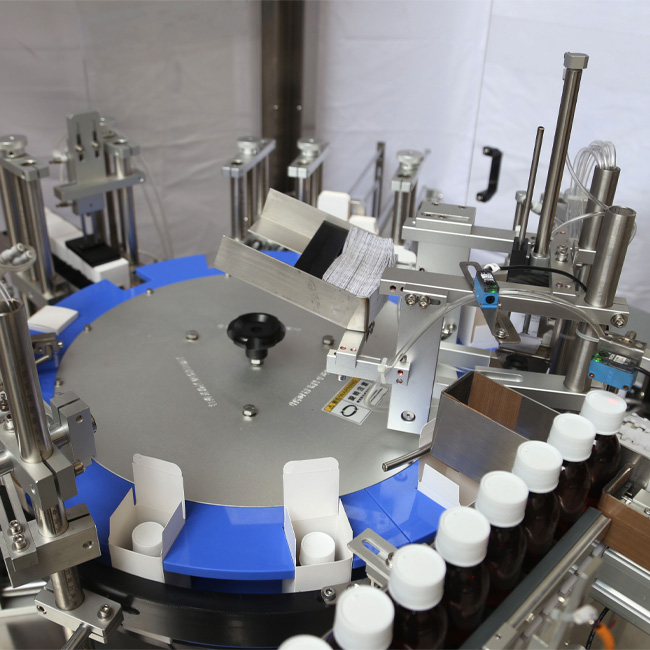

This kind of machine can automatically pack various forms of product in the box, including bottle, sachet, tube, blister, ampoule, vial, soap, and test kits etc, easily connecting with other packing machines to be the whole line.

We will match the machine model according to your box type, production volume and industry.

Commonly used models include Horizontal 80/130 cartoning machine, vertical 120 cartoning machine, and Vertical 50 top-opening cartoning machine.

Technical Parameters
