GSZ-130
Innov

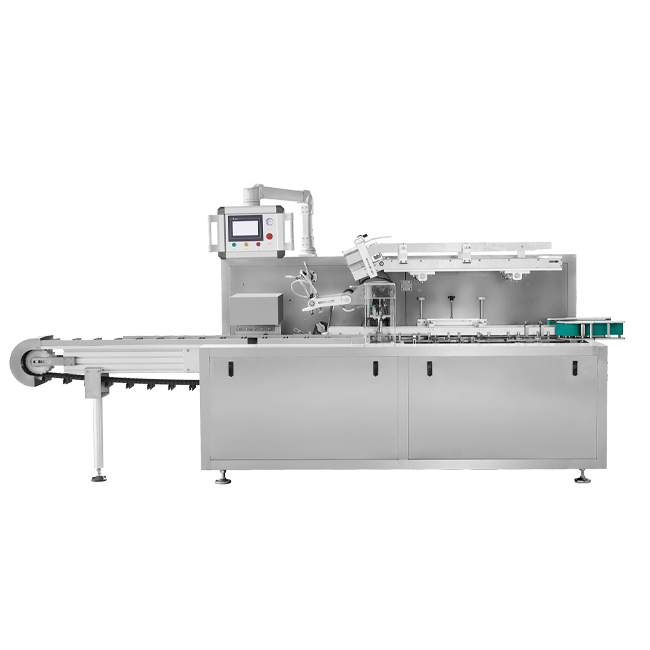

Automatic Horizontal Tube Bottle Cartoner Pharma Blister Cartoning Machine
Machine Features
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. HIM operation system is adopted.
3. Automatically stopped when machine is overload.
4. With function of no product no carton suction.
5. Automatically displaying trouble, alarm and count finished products.
6. Stable performance, easy operation.

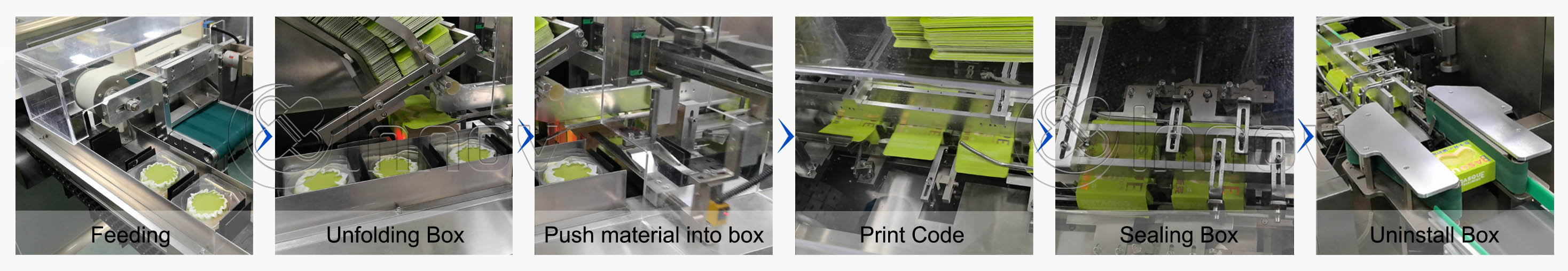

Working Process
This equipment is suitable for automatic feeding and box loading of larger materials. The whole process of online material detection, batch number stamping, paper tongue packaging at both ends of the carton (hot melt adhesive can also be used) and finished product output is completed automatically.
Machine Application
This kind of machine can automatically pack various forms of product in the box, including bottle, sachet, tube, blister, ampoule, vial, soap, and test kits etc, easily connecting with other packing machines to be the whole line.
Technical Parameters
Model | GSZ-130 | |
Packing speed | 50-80 cartons/min | |
Carton | Quality requirement | 250-350g/m2 (depending on the sachet size) |
Dimensions (L*W*H) | (65-125)*(30-85)*(12-50)mm (can be customized) | |
Instructions | Quality requirement | 60-70g/m2 |
Unfolded size | (80-250)*(90-170)mm | |
Folds | 1-4 fold(s) | |
Compressed air | Operation pressure | ≥0.6mpa |
Air consumption | 120-160L/min | |
Power supply | 220V/380V, 50Hz (can be customized) | |
Main motor power | 0.75KW | |
Overall dimensions (L*W*H) | 2150*1140*1800mm | |
Net weight | About 1100Kg | |
