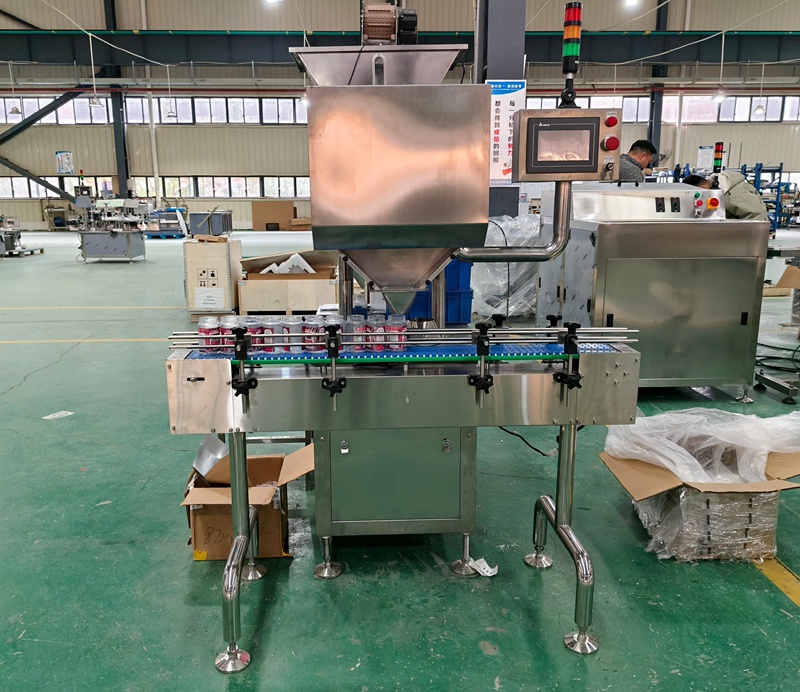

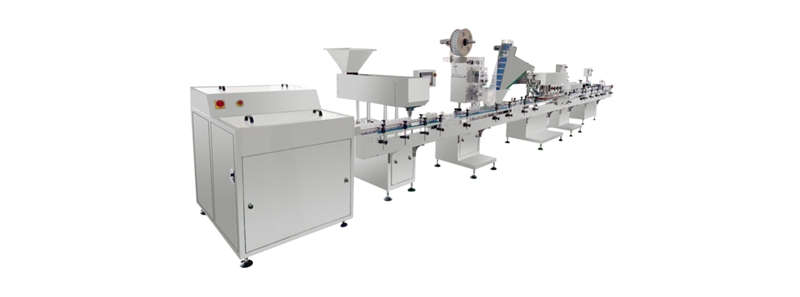

Bottle Counting Filling Line

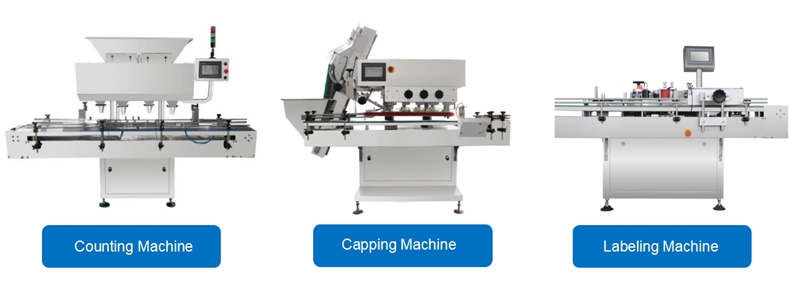

The bottle counting and filling line is an automated pharmaceutical packaging system designed for high-precision counting and bottling of tablets, capsules, soft gelatin capsules and other solid dosage forms. The production line usually integrates a bottle feeder, a desiccant inserter, a tablet counting machine, a capping machine, and a labeling machine, with a counting accuracy of up to 99.9%. The production line can adjust the appropriate machine model or tablet counting method according to the production requirements, with stable, efficient and GMP Compliance production. It is very suitable for mass production requirements in the food, health care products and pharmaceutical industries.

Applicable Products：

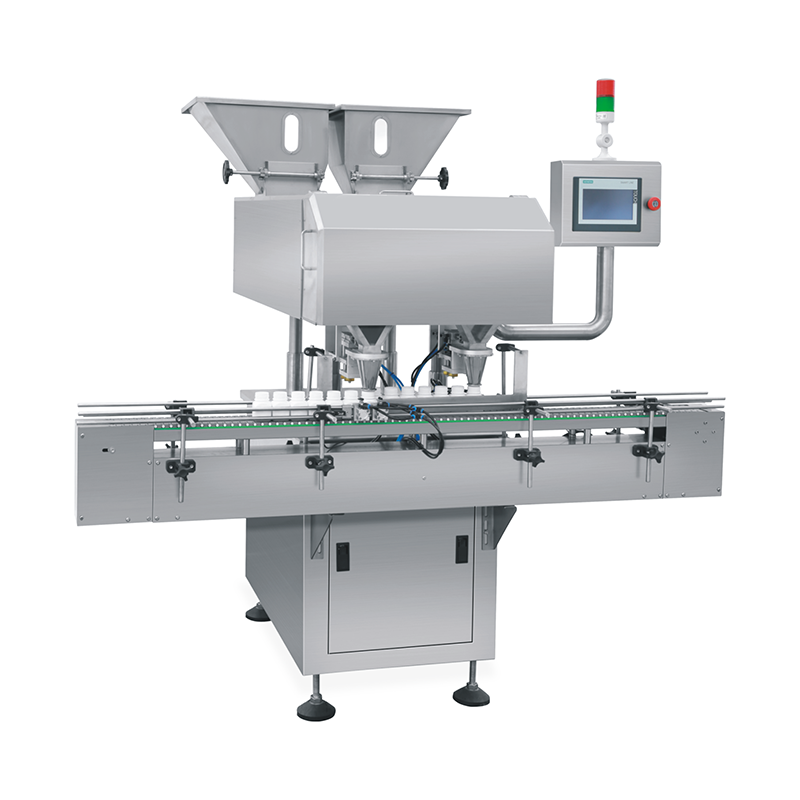

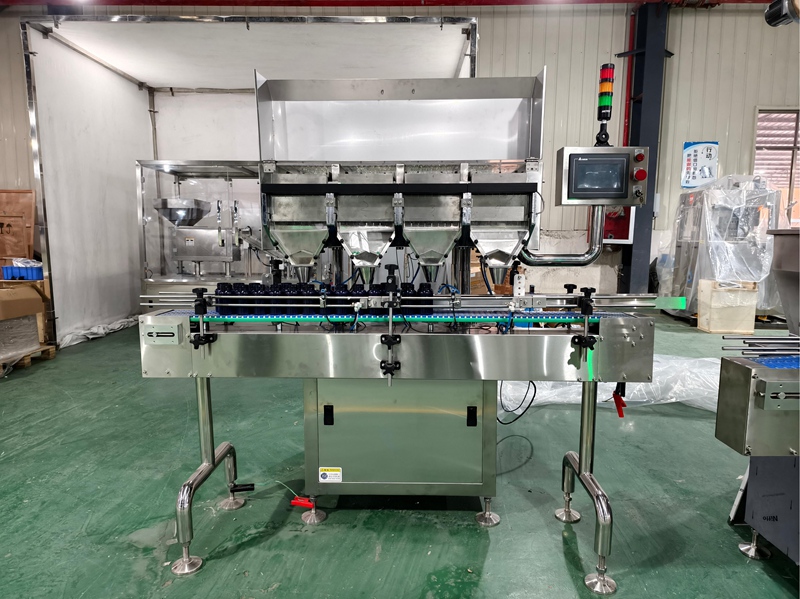

Automatic Electronic Counting Machine

Machine Introduction

This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of superior 304 stainless steel, which totally meets the GMP requirement.

Working Principle

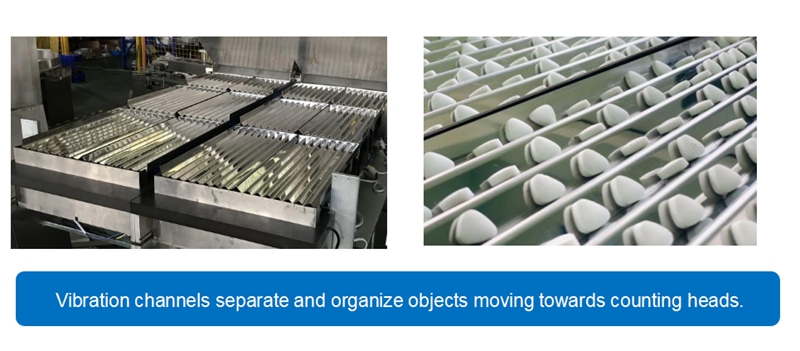

The bottle blocking device on the conveyor belt blocks the transferred bottle at the bottling position, waiting for filling. The material falls into the counting device in an orderly manner through the vibration of the feeding corrugated plate, and is counted by the photoelectric counting sensor and then loaded into the bottle at the bottling position.

Technical Parameters

Optional Additions

Machine Details

Machine Layout

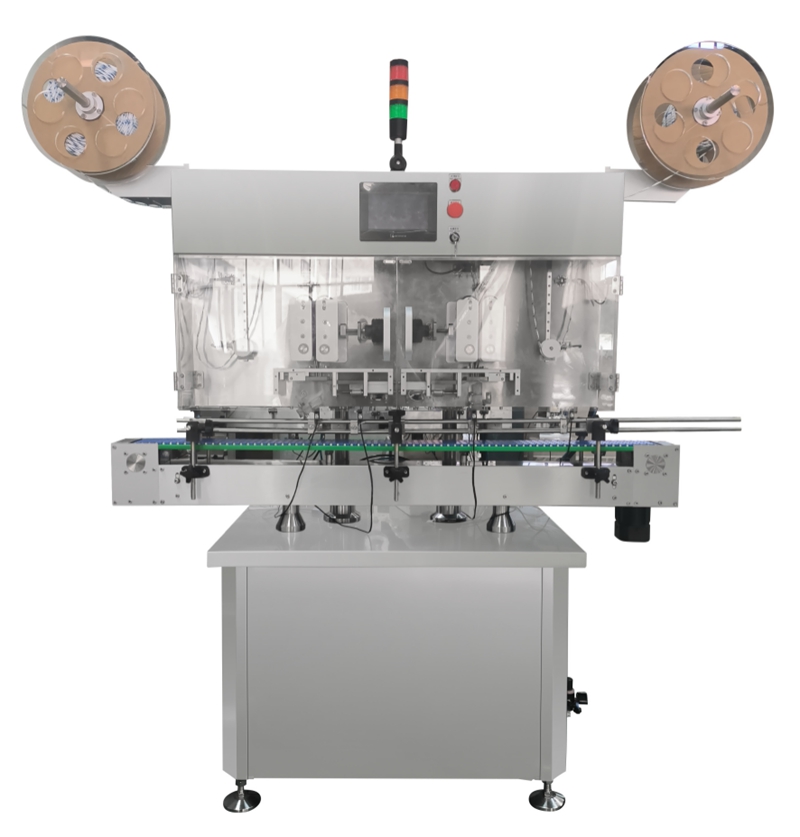

High Speed Automatic Desiccant Pouch Inserter

Machine Introduction

SED-2GSP Automatic Desiccant Pouch Inserter is specially designed for inserting desiccant pouch into a variety of bottles and containers. It automatically cuts packets from a roll and insert them into containers at speeds of up to 170 bottles per minute. This machine can run independently or be integrated into an automated packaging line.

Working Principle

The bottles on the conveyor belt are stopped by the bottle blocking device at the position where the desiccants drop, waiting to be filled. The stepper motor drives the pouch feeding structure, and the color mark sensor automatically controls the pouch feeding distance. After the desiccant pouch is pulled out from the reel, the cutting device cuts the desiccant pouch and drops it into the bottle. And the filled bottle is transported to discharge by the conveyor belt.

Features

· The desiccant inserter has advanced HMI and PLC control system that allows the operator to monitor all processes and make any changes on touch screen.

· Color mark sensor can control the feeding distance automatically by sensing the color mark of the desiccant pouch, which ensures the accurate control of pouch length.

· The desiccant pouches thickness adaptation design and highly durable cutter make sure accurate cutting and avoid breakage of the desiccants.

· The machine body is made of 304 stainless steel material, which is full GMP-compliant design.

Technical Parameters

Aluminum Foil Induction Sealing Machine

Machine Introduction

SED-LFS Automatic Electromagnetic Aluminum Foil Induction Sealing Machine is used to seal aluminum foil inside the non-metal cap of plastic and glass bottles, reaching the aim of wet-proof, leakage-proof and extending preservation time. It is widely used as sealing packaging machine in industries such as pharmaceuticals, chemicals, cosmetics, foods, etc.

Working Principle

After the cap or closure is applied, the container passes under induction coils, which emit an oscillating electromagnetic field. As the container passes under the induction coils (sealing head), the conductive aluminum foil liner begins to heat due to eddy currents. The polymer film heats and flows onto the lip of the container. When cooled, the polymer creates a bond with the container resulting in a hermetically sealed product.

Features

· Stainless steel body material: The body is made of high quality 304 stainless steel, which is durable and resistant to corrosion and oxidation.

· Water-cooled heat dissipation: Integrated thickened copper tube with built-in water circulation system, which can reach fast heat dissipation and long service time. Ordinary tap water can be used.

· Height adjusting handwheel: It can be adjusted to the appropriate height freely according to the height of product to be sealed.

· Width adjusting guide rail: It can be freely adjusted to the appropriate width according to the product width.

· Induction sealing device: The induction coil is made of pure copper, with fast and comprehensive induction, ensuring stable, efficient and firm sealing.

Technical Parameter

Machine Details

Machine Layout

Remark: The products are continuously upgraded, and the appearance refers to the real object.

YDT Automatic Round Bottle Labeling Machine

Machine Introduction

YDT Automatic round bottle labeling machine, also called vertical labeling machine, is suitable for labeling various round bottles. It is used for full/partial wrap around labeling on different sizes of round container, which is capable of labeling up to 100 containers per minutes depending on products and label size. Our labeling machine is widely used in Pharmaceutical, Food, Beverage, Cosmetic and other manufacturing industries.

Working Principle

1. Fix the label roll on the label holder, and adjust the labeling position.

2. Then adjust the distance between two rails to make sure the distance is suitable for the product to pass.

3. Manually put bottles on conveyor or using an automatic bottle turntable, and bottles will be separated by the bottle separator to keep the bottle distance for guarantee the working stable.

4. The bottle sensor detects the passing bottles and send a signal back to the control system. At the appropriate position, the system controls the label to be sent out and applied to the bottle evenly.

5. Rolling belts press bottles and make the labels more firmly without bubbles, wrinkles or alignment problems.

Features

l Made with 304 stainless steel, allowing for easy maintenance and remains in perfect condition after long term operations.

l Equipped with touch screen and PLC, easy to set or adjust working parameters, and language of control panel can be customized.

l Labeling station adjustment: According to different bottle height, user can adjust the height of labeling station with an adjusting handle, no need for any other tools.

l Bottle separating device: Bottle separator can keep the bottle distance for guarantee the working stable.

l Photoelectric bottle sensor: The bottle sensor detects the passing bottles and send a signal back to the control system. Then the label dispensing system will discharge a label and apply it on the bottle.

Technical Parameters

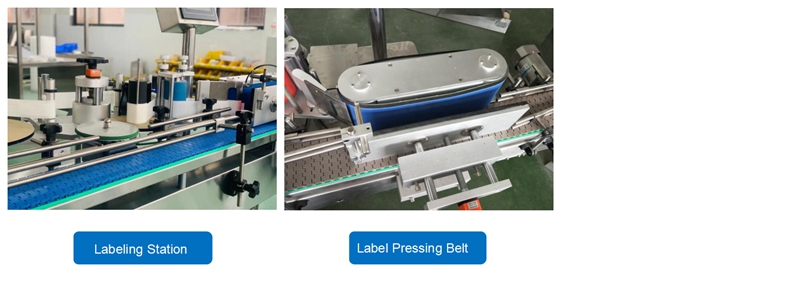

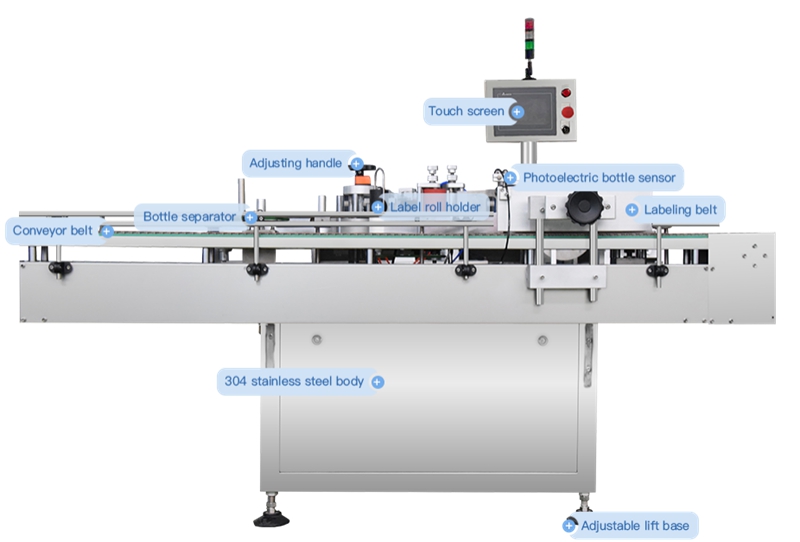

Machine Details

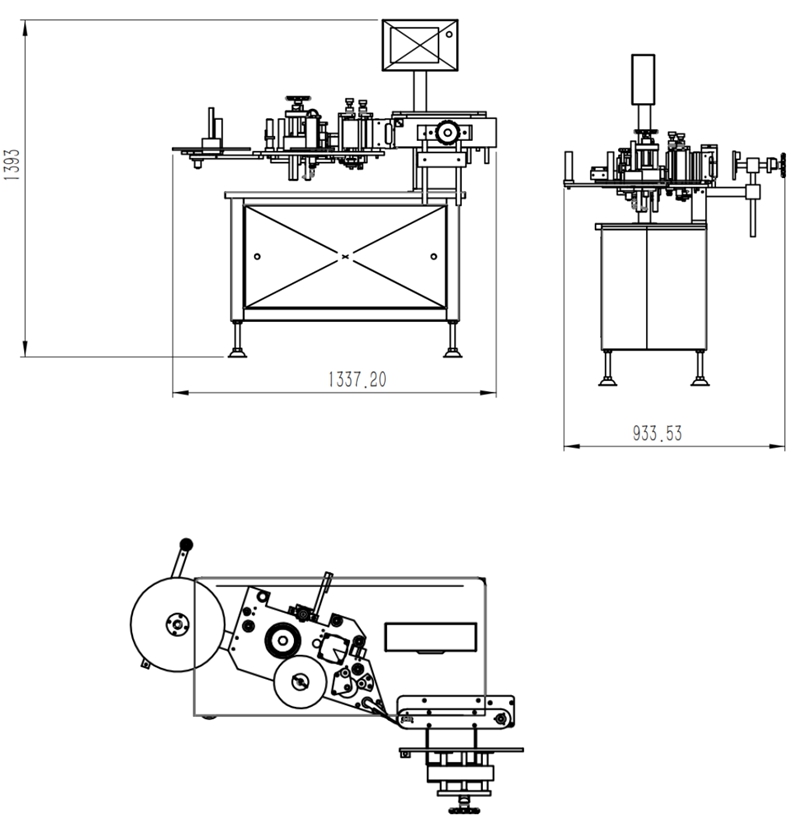

Machine Layout
