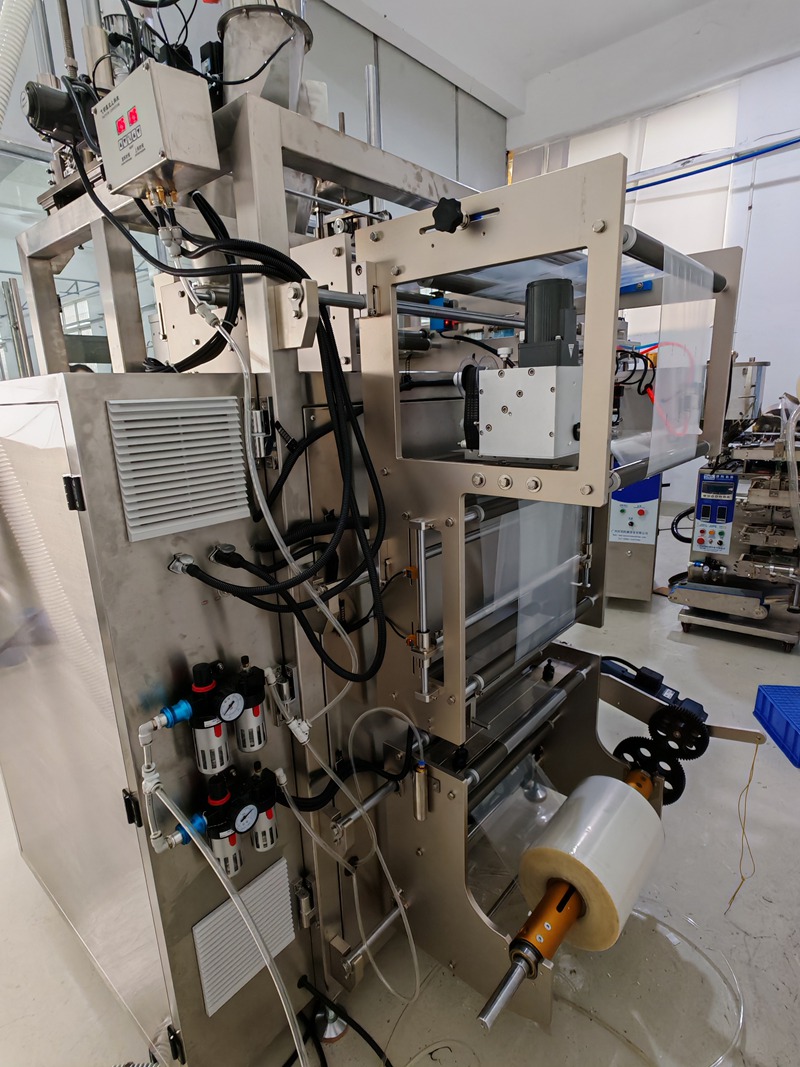

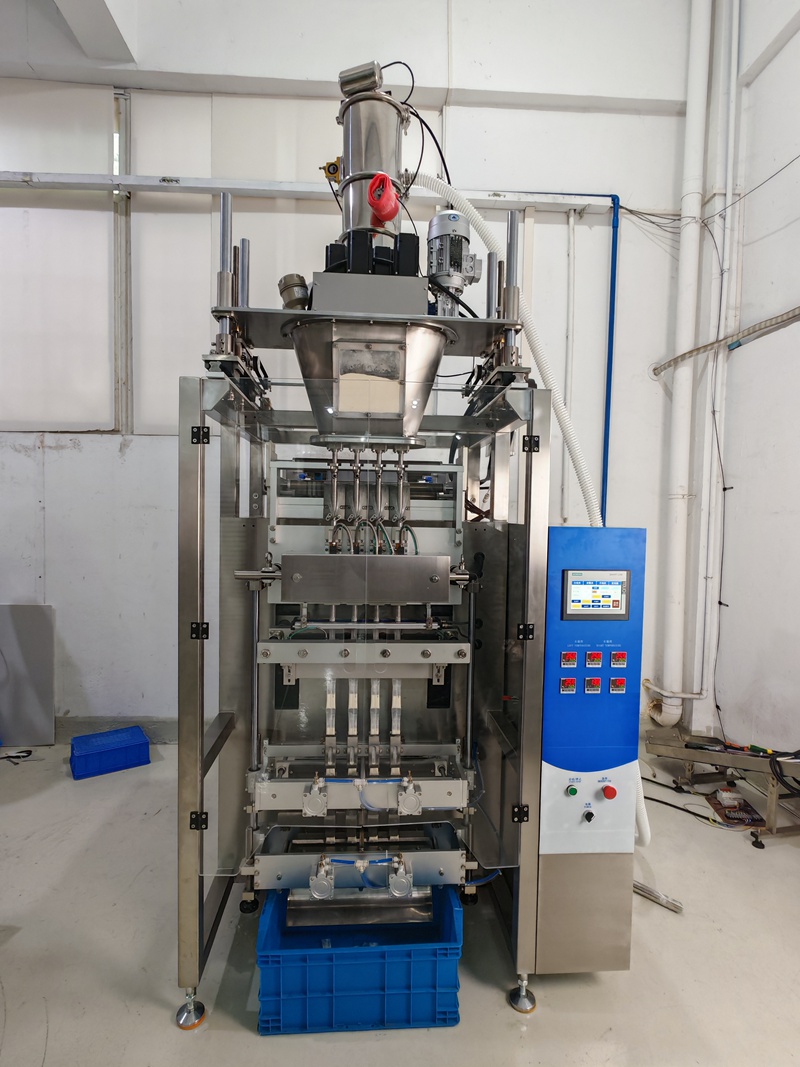

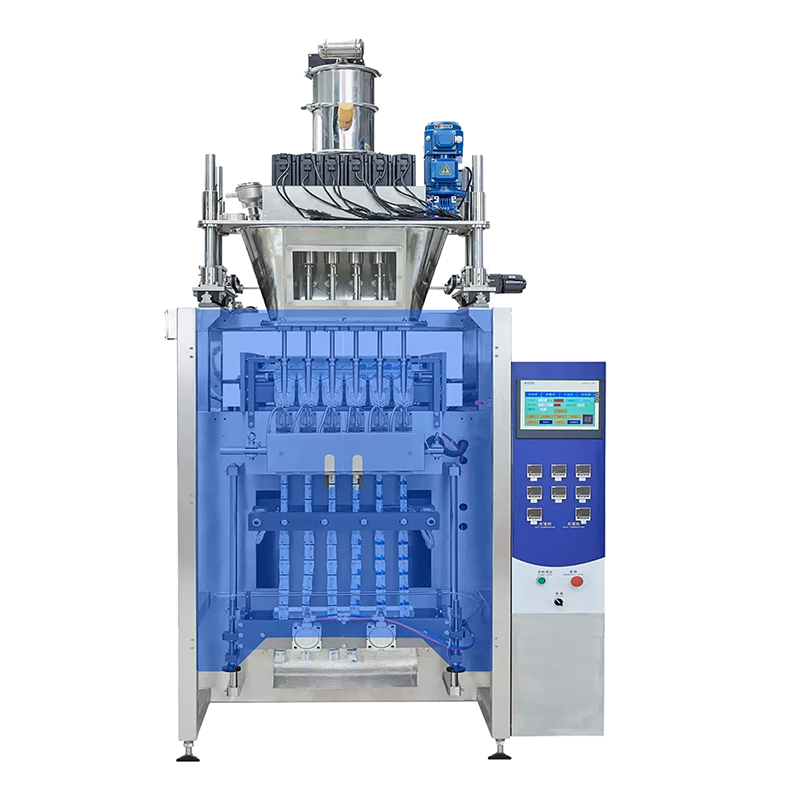

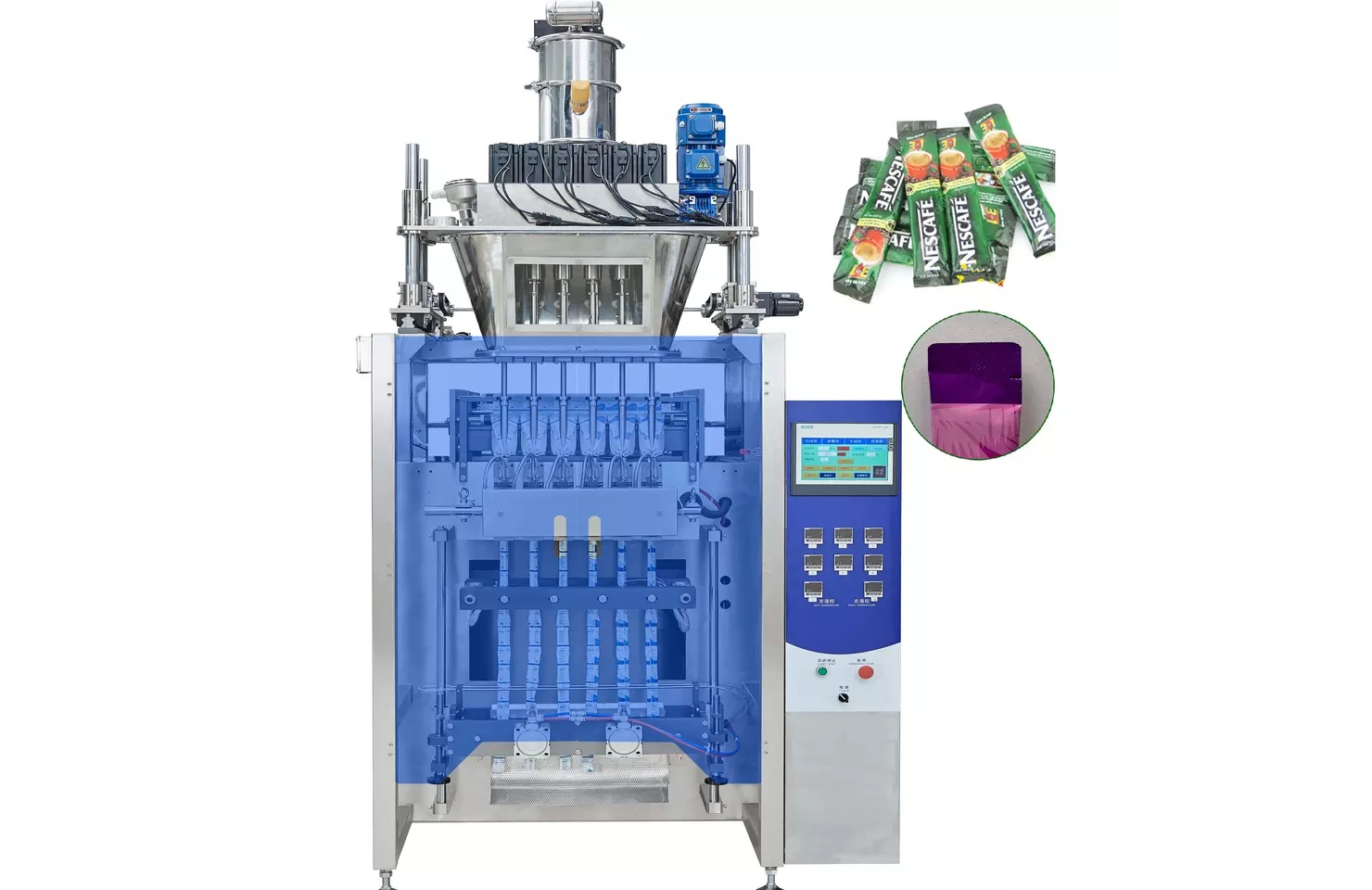

Multi-line Sachet Packing Machine


Availability:

Quantity:



Inquire Add to Basket

Pharmaceutical Machinery Packaging Machinery Tablet Press Capsule Filling Machine Cartoning Machine

Product Description

Provide 1-12 bar bag filling machine, capable of producing 40-480 bags per minute. The machine can accommodate 1-12 bar packs. Widely used in food, pharmaceutical and chemical industries, for packaging any loose, non-sticky granular products, such as coffee, instant beverages, desiccants, MSG, sugar, salt, cereals, etc. By changing the filling system, the machine can also fill bar packs, ketchup, liquids, honey, soups, oils, skin care products, toiletries, etc.

Machines introduction

Application：

Product Description：

Automatic packaging for all kinds of powder materials in chemical industry, pharmacy and foodstuff industry, such as milk powder, spice powder, cosmetic powder, tea and medical powder, etc.

Technic parameters:

Packaging Material	Powder

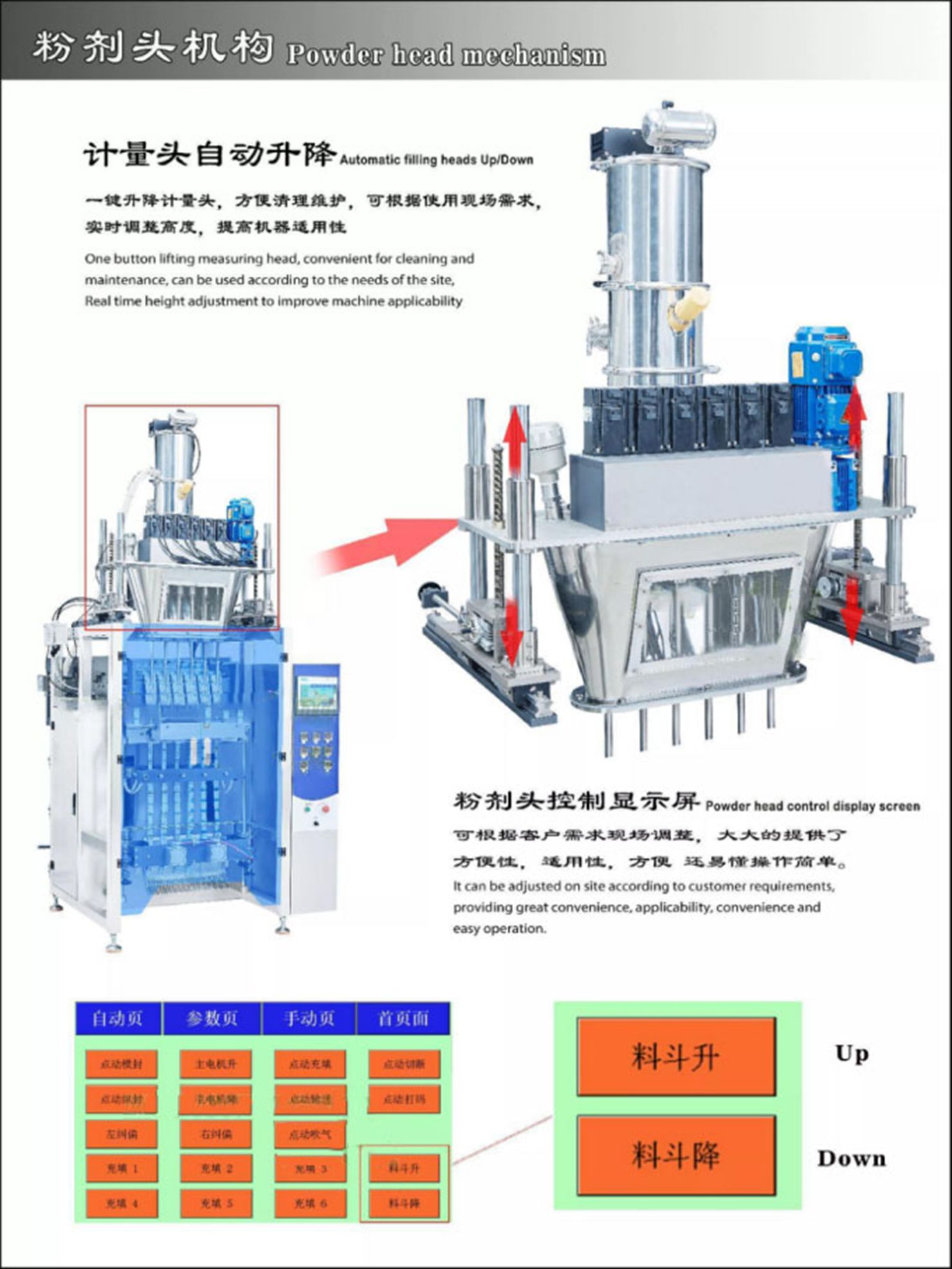

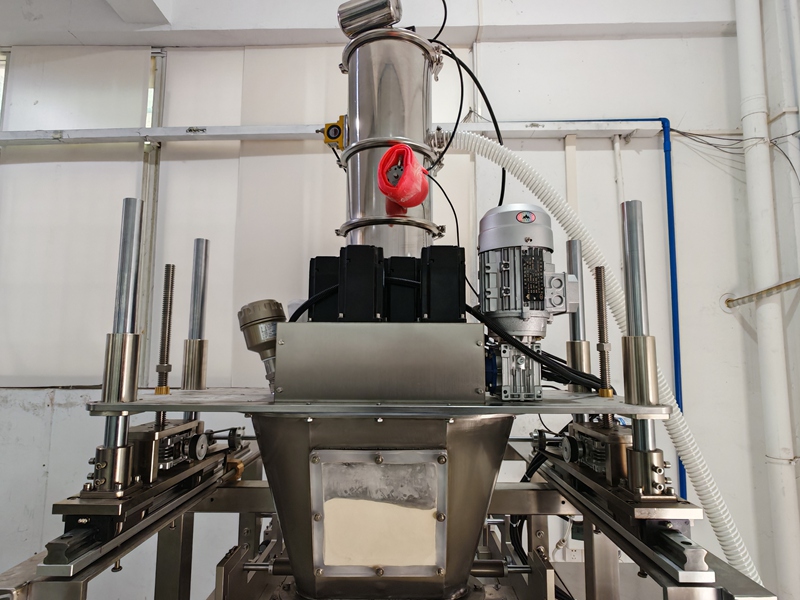

Filling	Auger

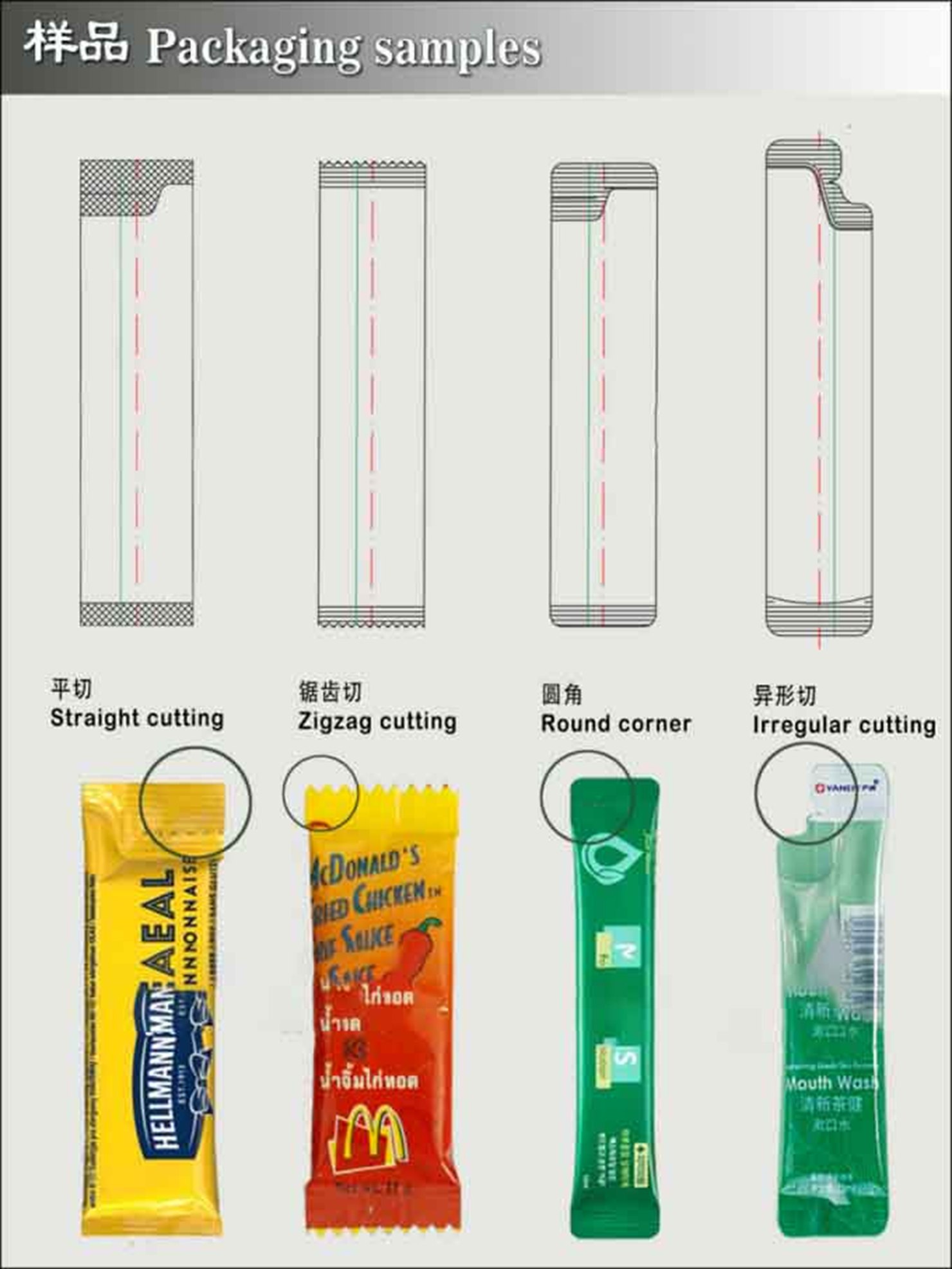

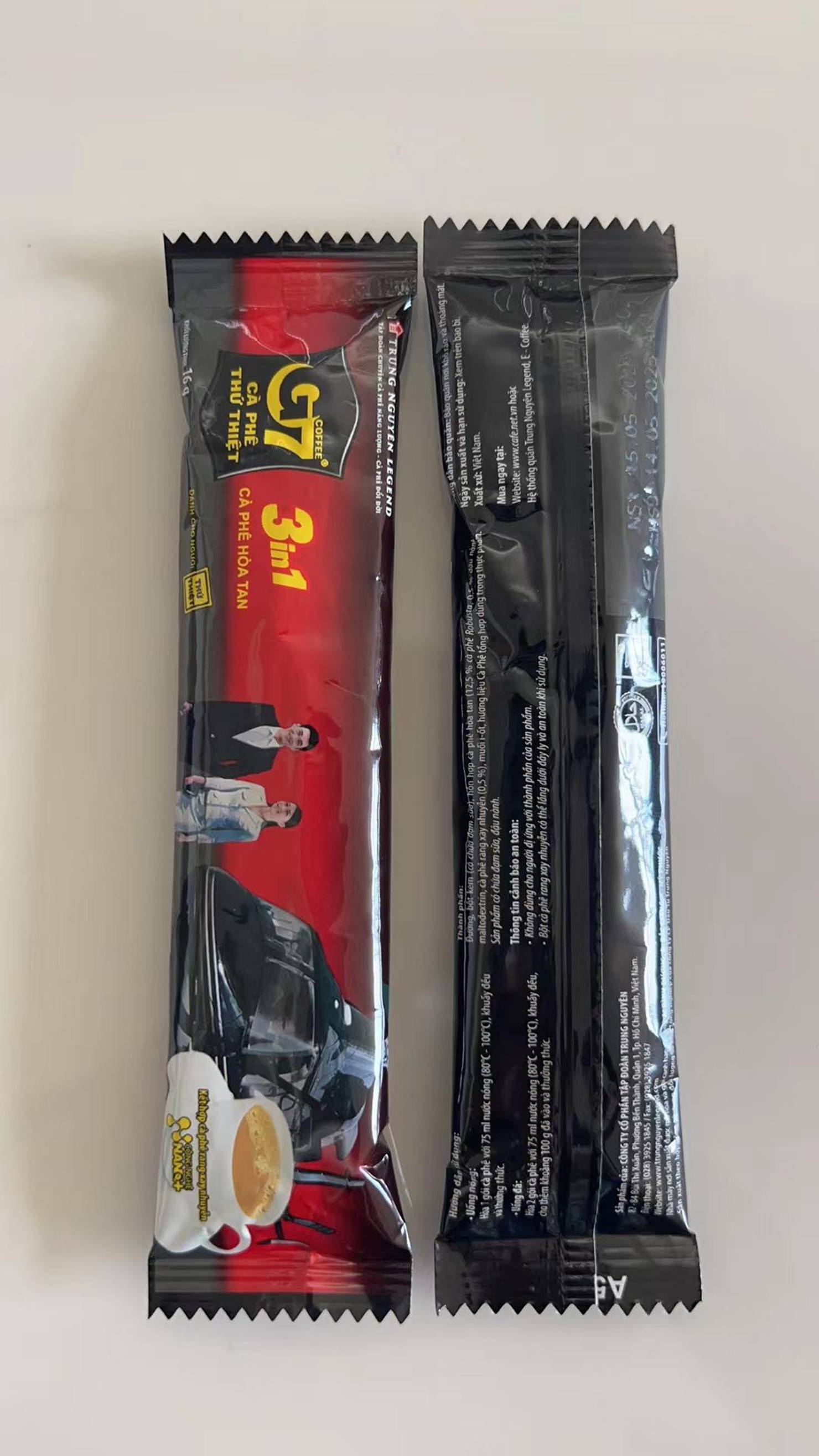

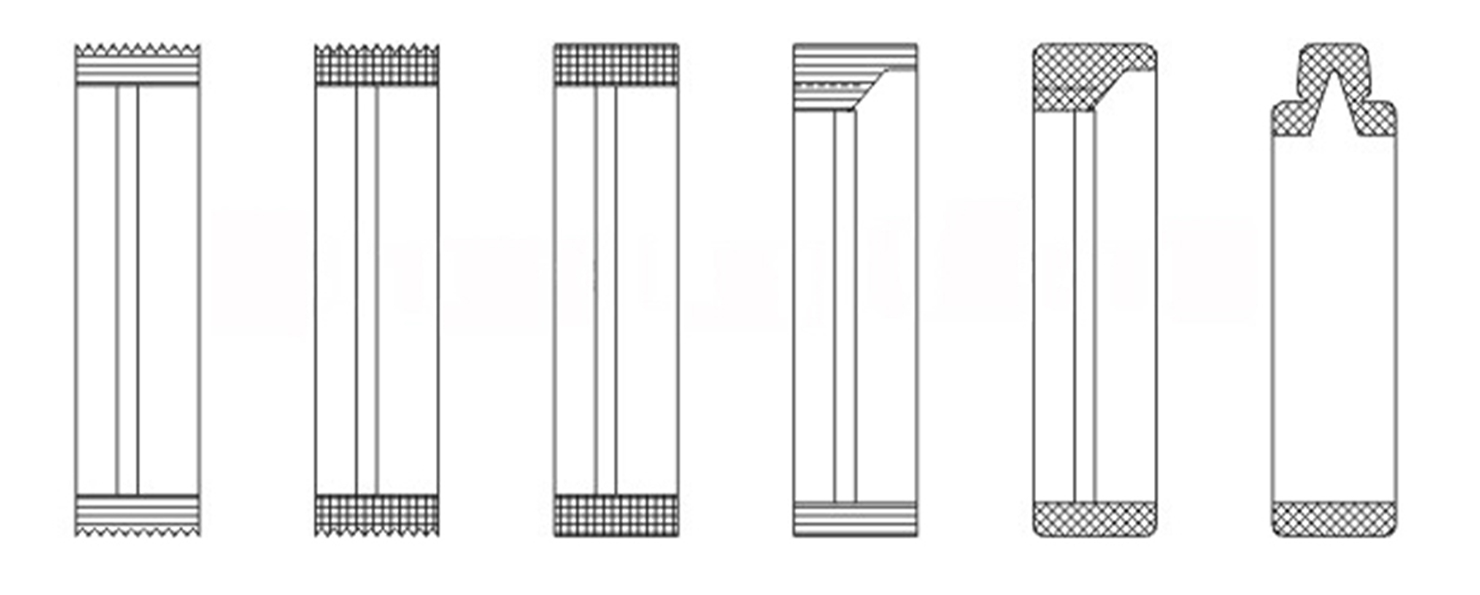

Bag type	Stick bag
Dosage
Max Film width	480mm
Bag width
Bag length	mm
Capacity	35-45bags/min/line
Control style	PLC + Chinese/English screen
Pneumatic request	0.24cbm/min, 0.6Mpa
Total power	8.8kw
Voltage	AC380v 3 phases 50Hz
Weight	1380kg
Material	Body shell and contact part ss304

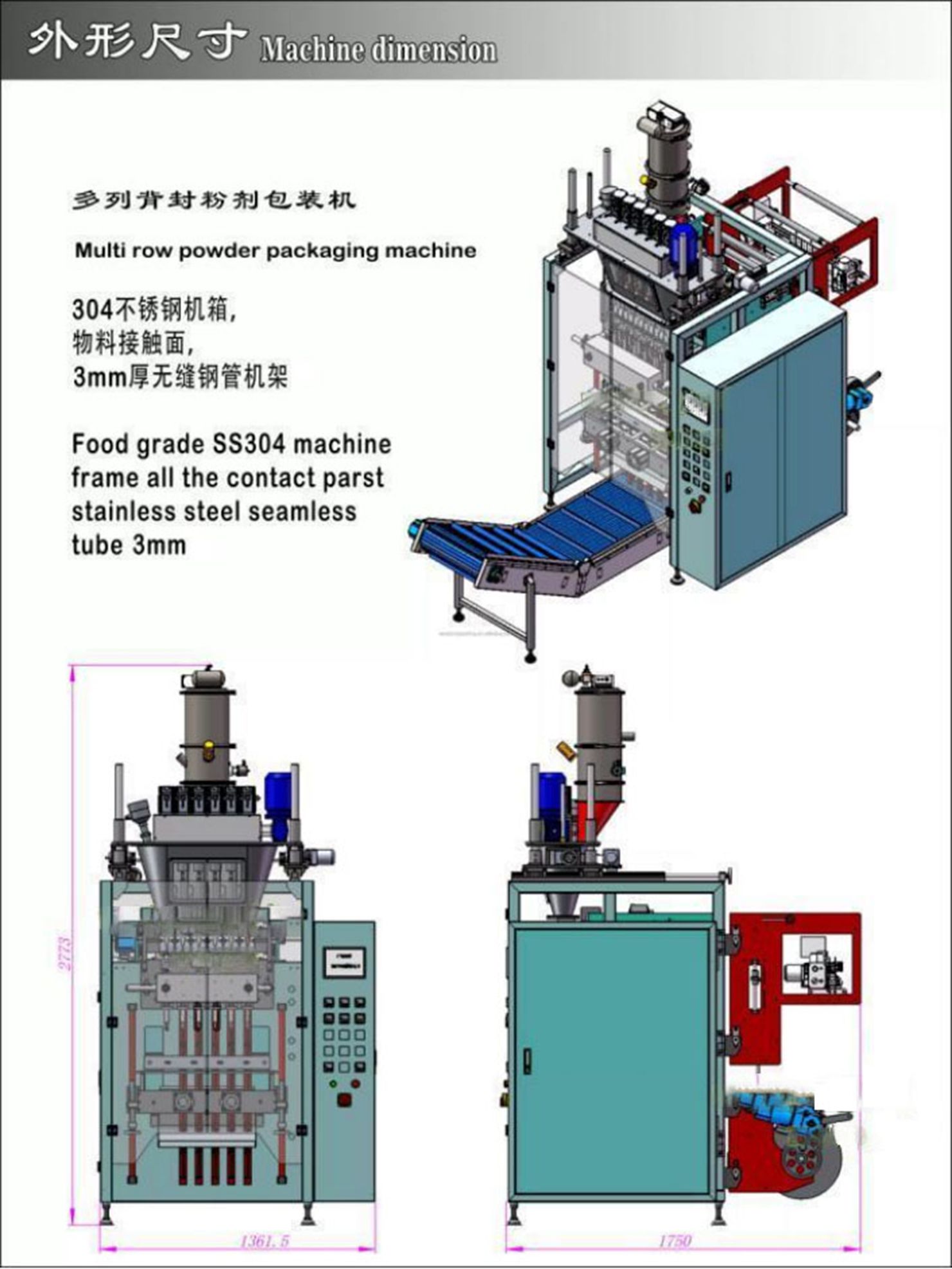

Dimension	L1671W1327H2719mm

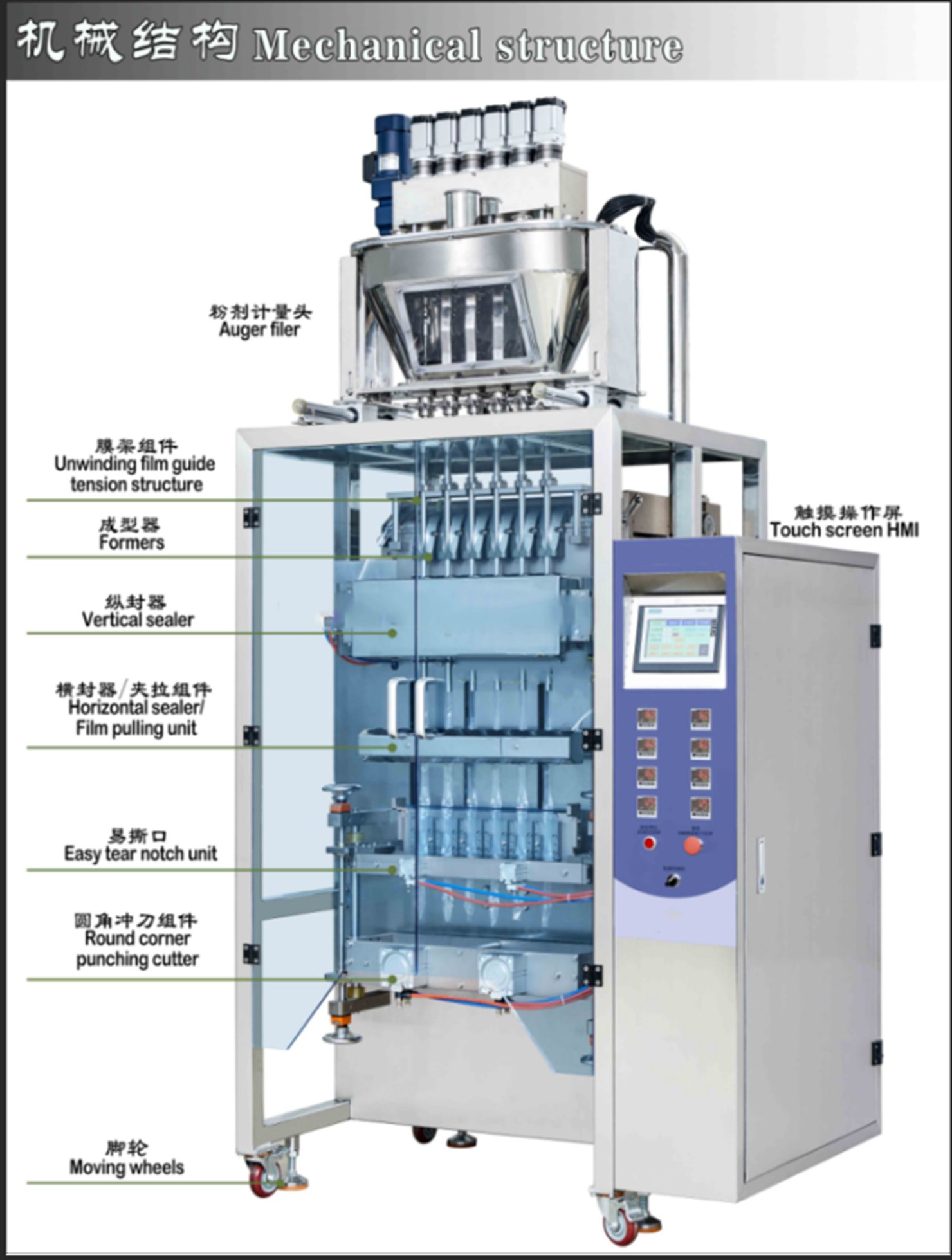

Machine Components:

Item	Type of brand
PLC	Siemens(Germany)
Touch Screen	Siemens(Germany)
Relay	Omron(Japan)
Thermo couple	Omron(Japan)
Proximity switch	Omron(Japan)
Power Supply	Schneider(French)
Power switch	Meanwell(Taiwan,China)
Air cylinder	AirTAC(Taiwan,China)
Material	Machine body shell and Material contact part--304 Stainless Steel
