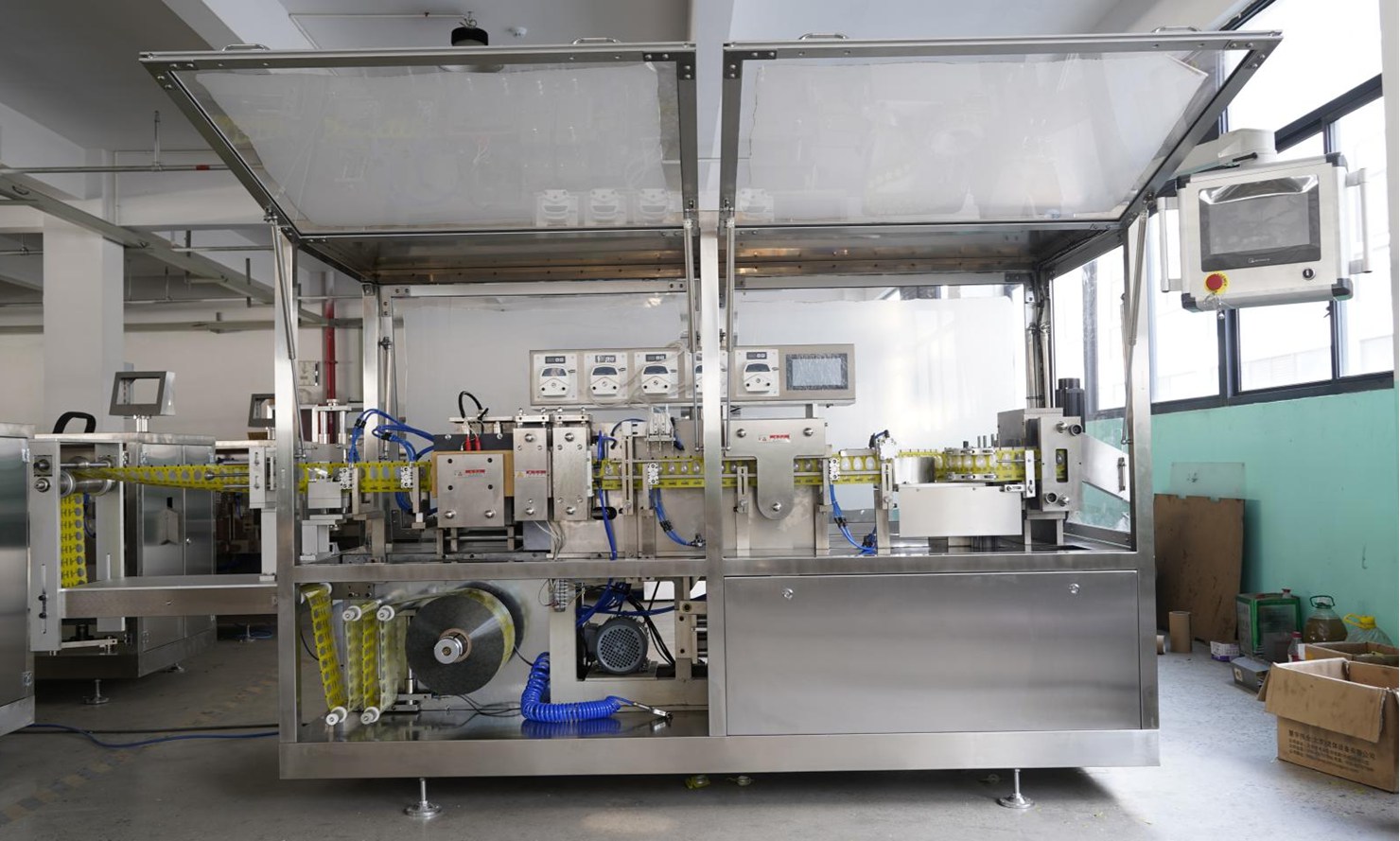

The machine is suitable for unit metering of medicine, beverage, dairy product, health product, food, cosmetics, perfume, pesticide, fruit pulp and so on.

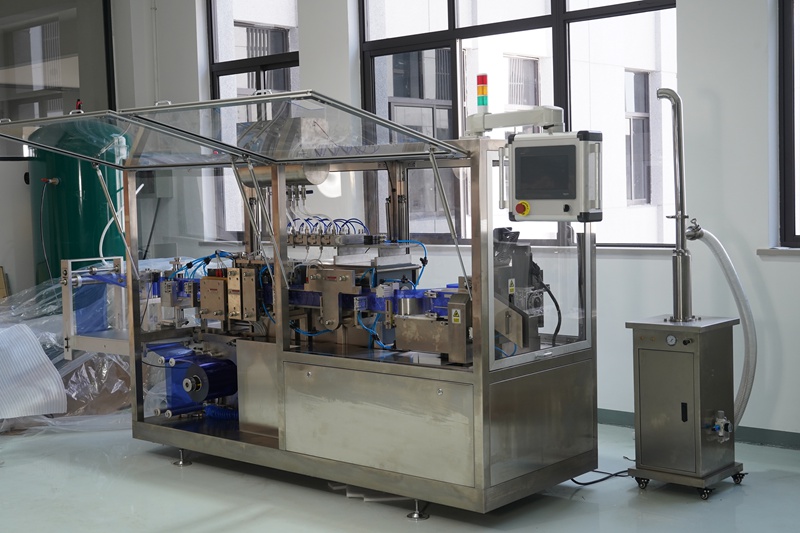

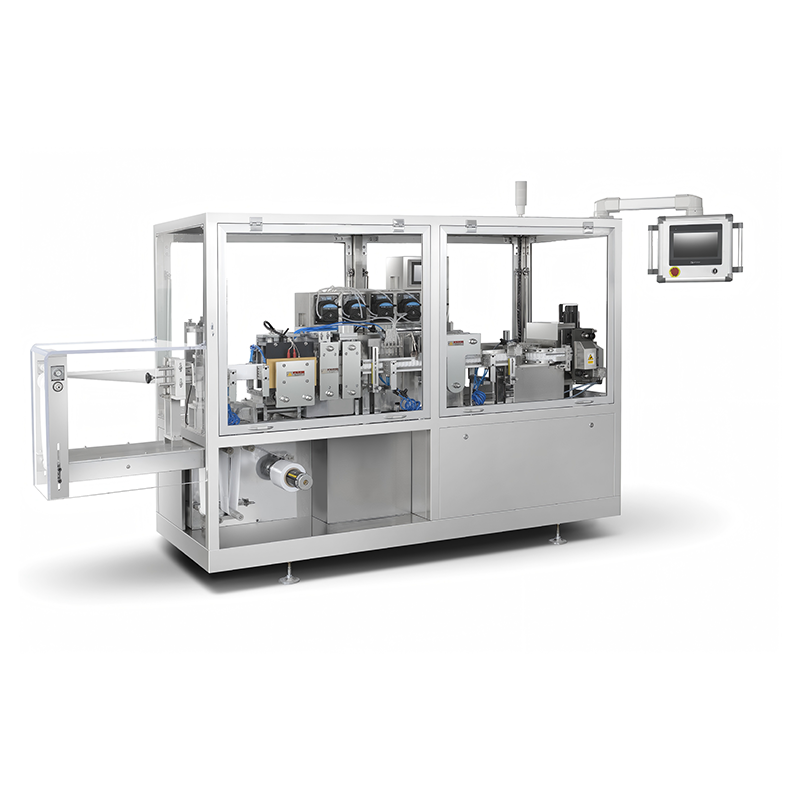

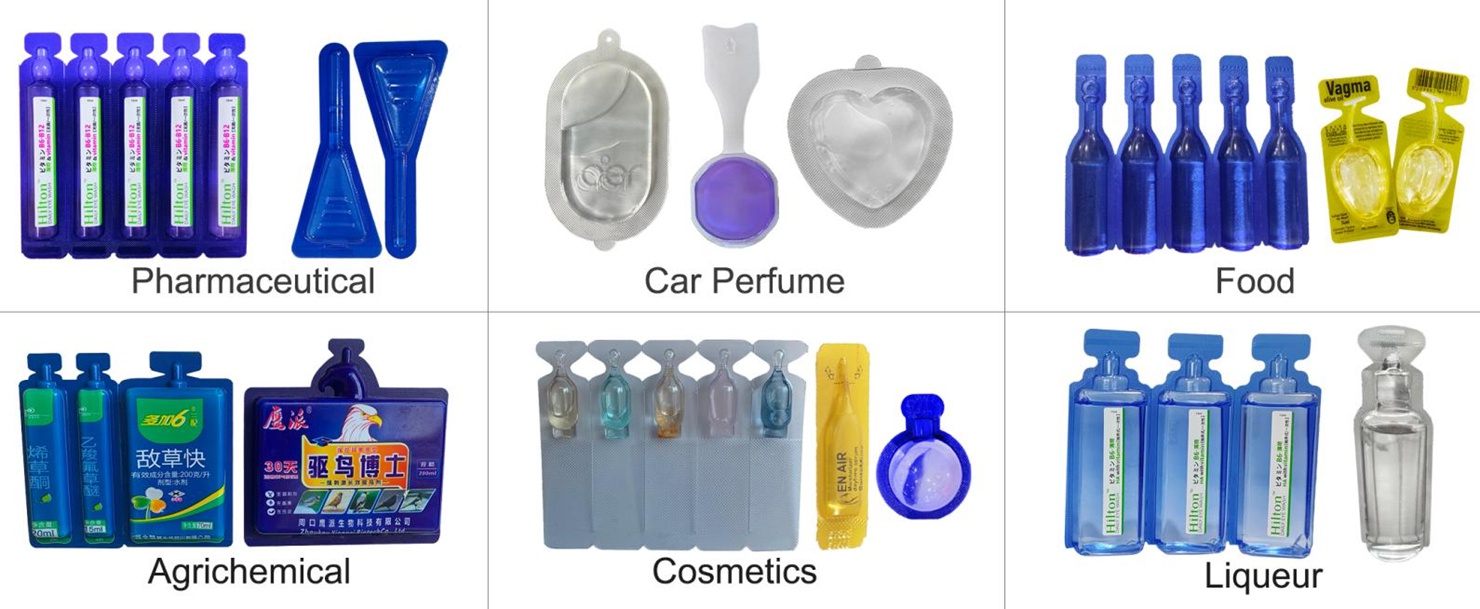

Sample photo
Performance characteristics
1) High capacity, high speed, high precision, and advanced motion controller. Stepless frequency conversion speed regulation control. Servo motor controls film traction device.
2) Human-machine interface, easy to operate.
3) Automatic unwinding, roll film cutting. It has positive and negative pattern alignment function with photoelectric device. The product is exquisite and beautiful, which meets high standard of packing requirements.
4) It adopts electronic peristaltic pump device and mechanical piston pump control, which has convenient adjustment.
5) High filling accuracy with suction back function without any dripping.
6) The parts contacting with the medicine adopt high quality stainless steel 316L, and the outer cover of the machine is made of SUS304 stainless steel, which meets with GMP standard.
7) As the bottom of the bottle is flat, so it can stand.
8) The cutter is individually controlled by dual servo motors, and you can cut at will if you need several pieces per board.

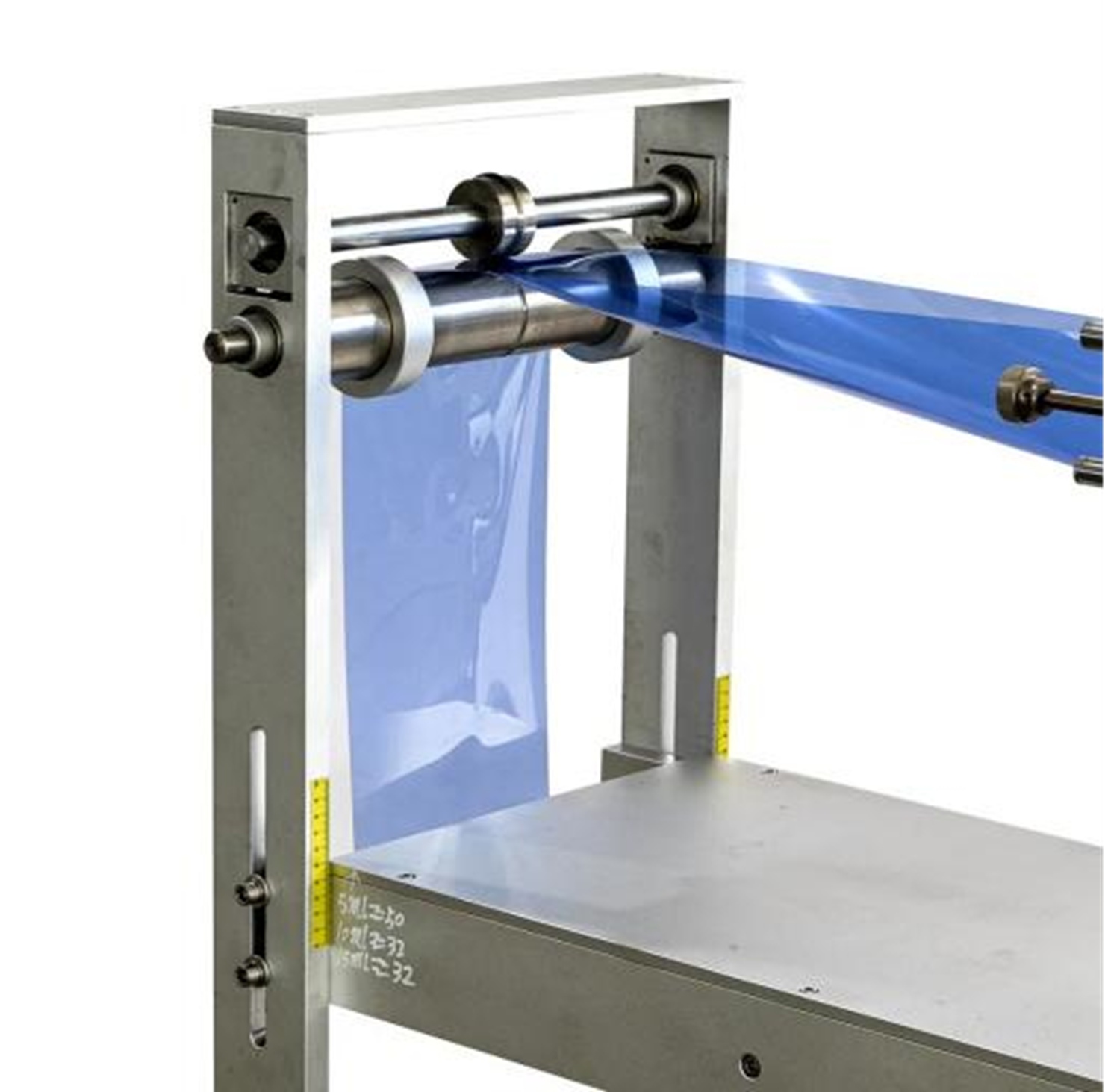

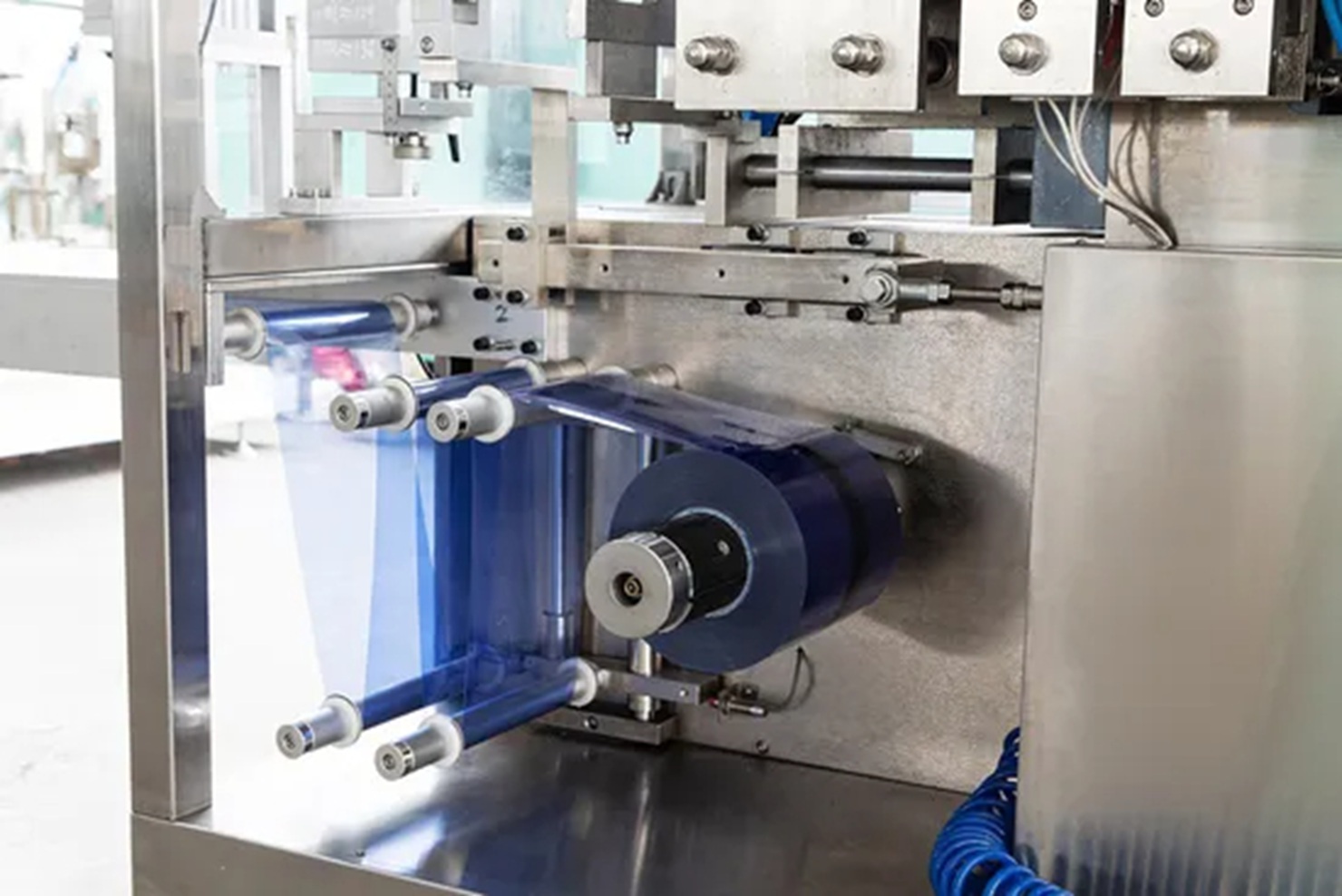

Material roll

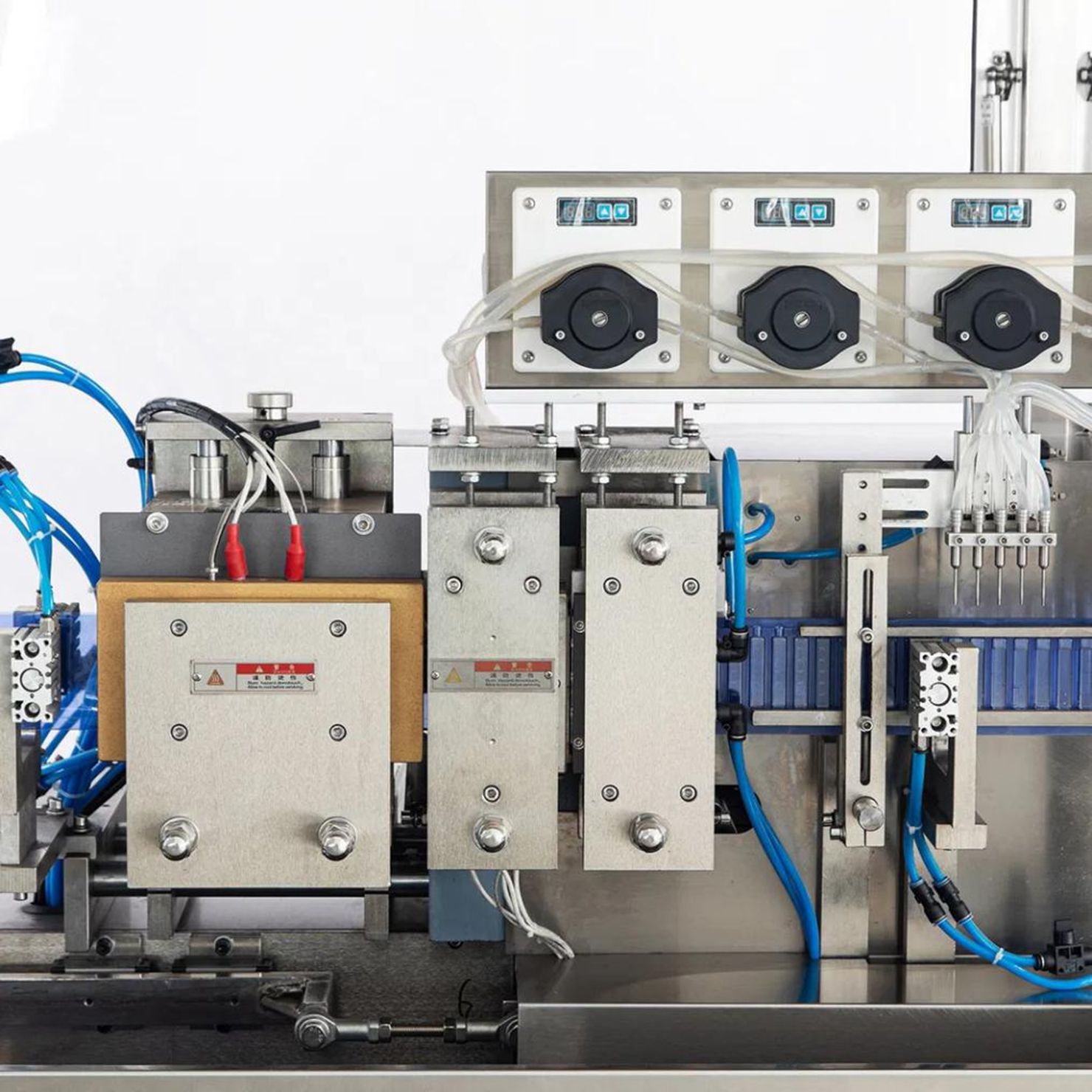

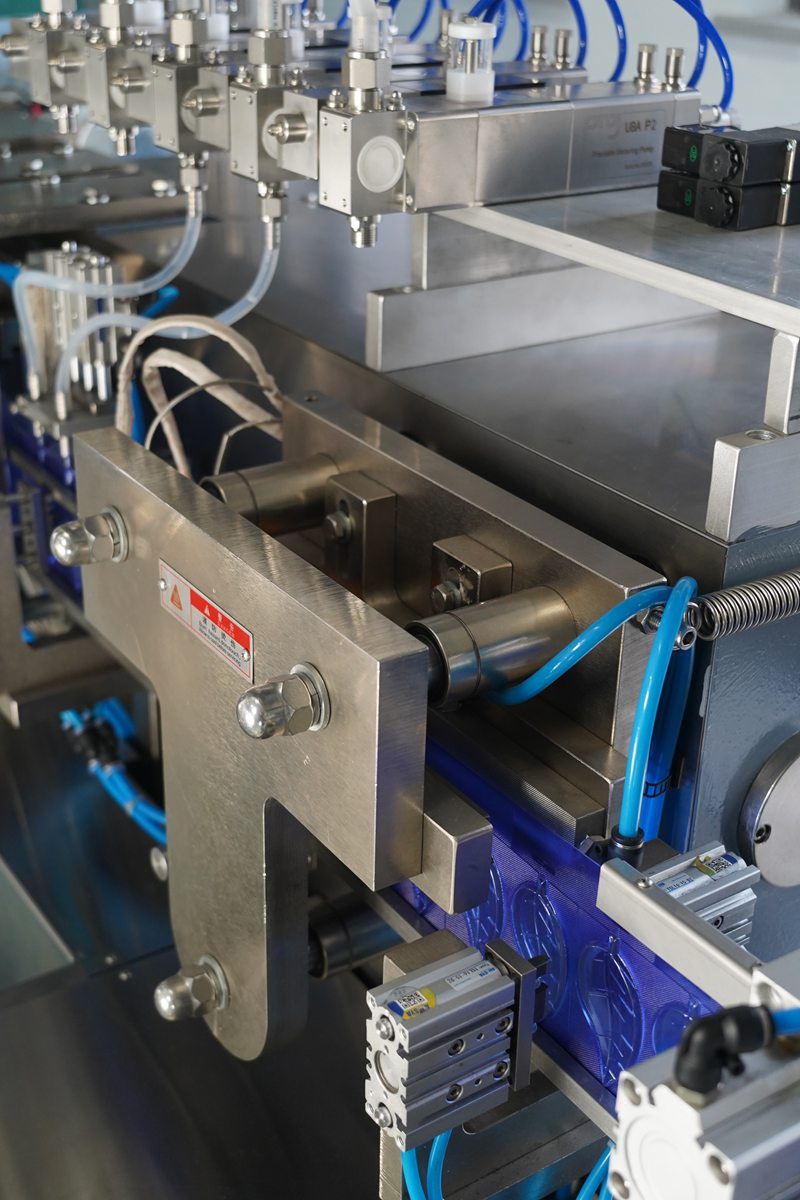

Forming station

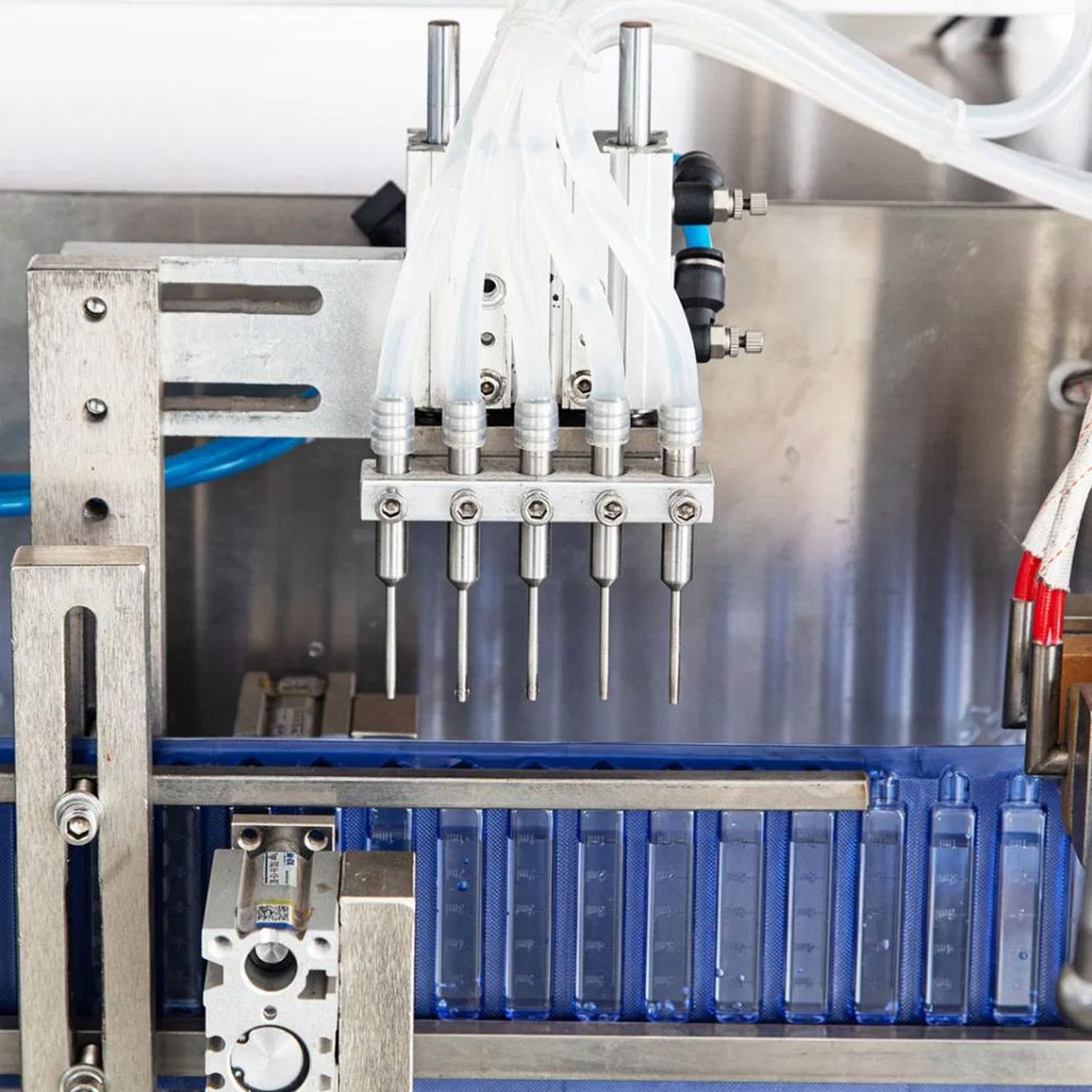

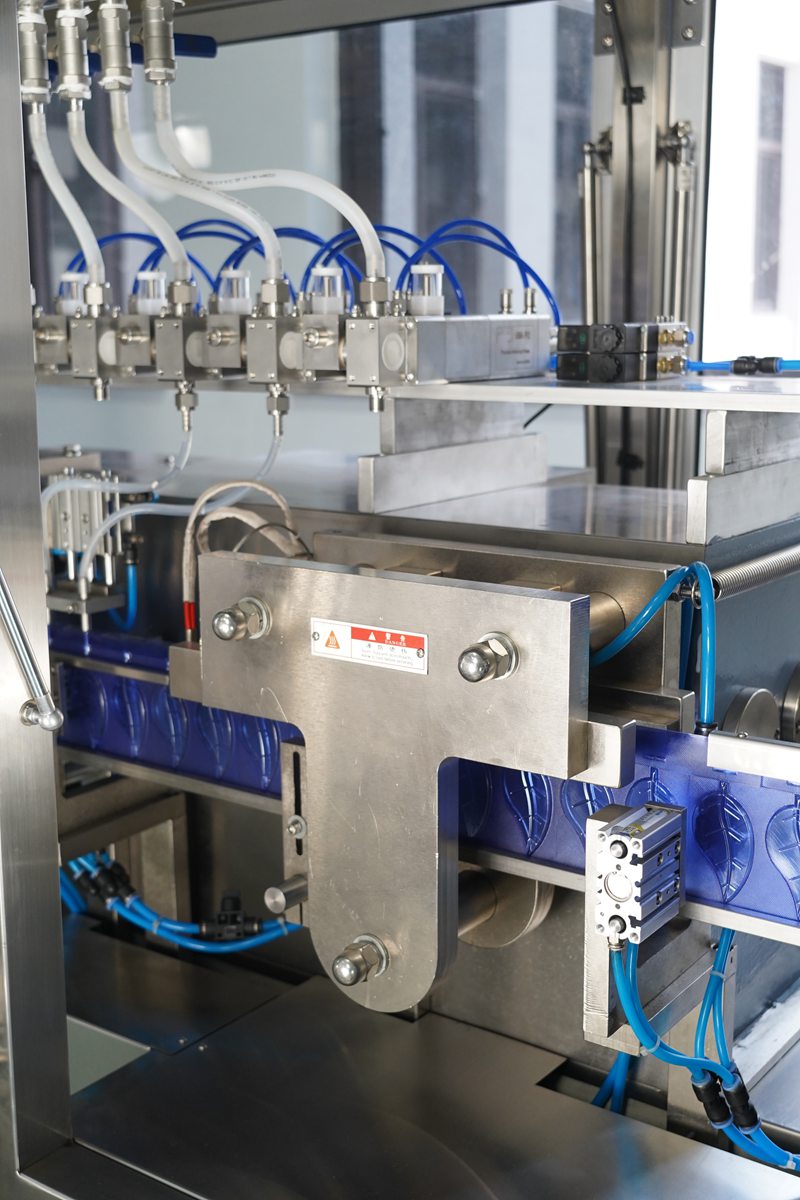

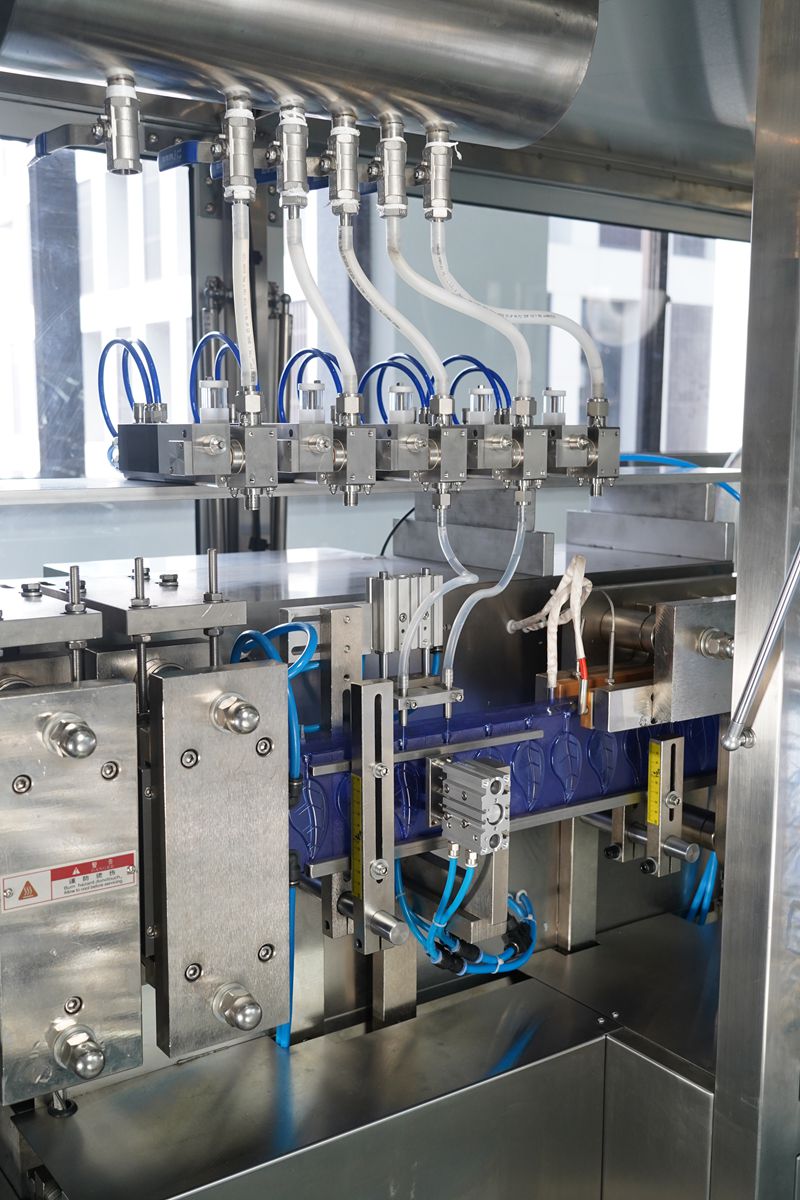

Filling station
Sealing station
Cutting Station
Control Panel
Main Technical Parameter
Model | GGS-240(P5A) |
Max. forming depth | 12mm |
Forming frequency | 0-35 times |
Packing material | PVC/PE,PET/PE(0.2-0.4)×260mm |
Filling volume | 0.1-200ml |
Toal power supply power | 7KW |
Voltage | 380V/50Hz |
Machine weight | 1000Kg |
Overall dimension (L×W×H) | 3380×950×1800(mm) |
Dimension of forming and sealing stations | 2500×950×1800(mm) |
