The Ultimate Buyer's Guide to Horizontal vs. Standard Ultra-Micro Pulverizers

In the powder processing industry, selecting the right ultra-micro pulverizer directly impacts your product's purity, particle size distribution, and overall production energy consumption. Horizontal ultra-micro pulverizers and standard (mostly vertical) ultra-micro pulverizers are the two most common types on the market.

At Innov Equipment, we know that the core differences between these machines lie in structural design, milling efficiency, applicable scenarios, and maintenance convenience. To help you make a scientific, ROI-driven purchasing decision, we have broken down the four essential differences you need to know before upgrading your production line.

1. Fundamental Differences in Structural Design

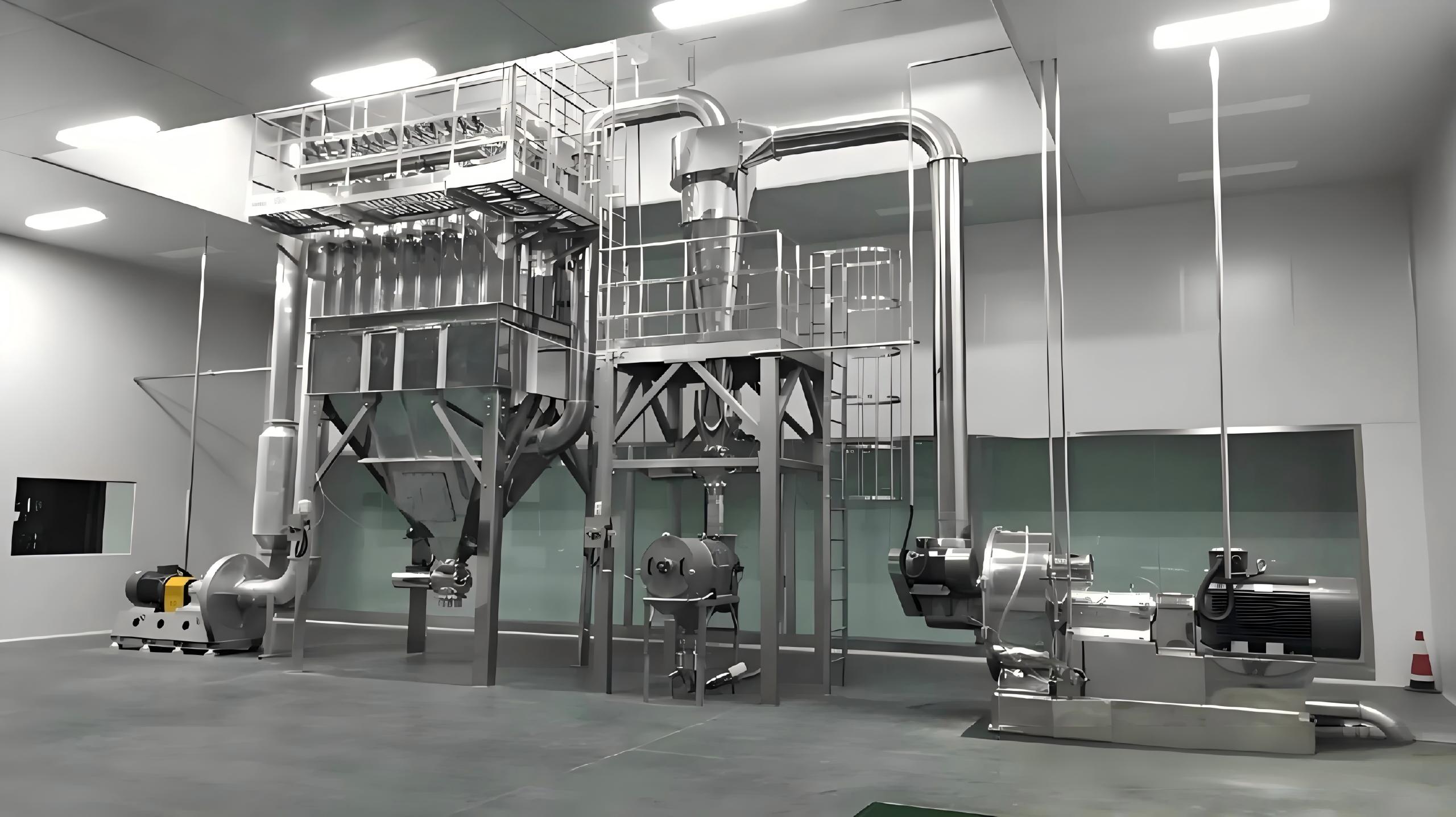

Horizontal Ultra-Micro Pulverizers: Integrated Flow

Horizontal models feature an advanced horizontal dual-chamber design. The main shaft runs horizontally through the primary milling chamber, the secondary milling chamber, and the fan chamber.

• Workflow: Material undergoes initial crushing in the first chamber, then moves to the second chamber for further refinement and air classification.

• The Advantage: This achieves a true, all-in-one "milling-classifying-discharging" process, allowing for superior separation of impurities and highly consistent output.

Standard Ultra-Micro Pulverizers: Compact and Simple

Most standard ultra-micro pulverizers utilize a vertical or compact single-chamber structure.

• Workflow: They rely on high-speed rotating blades or hammers colliding and shearing against fixed gear rings to crush the material.

• The Advantage: These machines have a smaller footprint, a simpler structure, and lower initial investment costs, making them a practical choice for laboratory settings or small-to-medium batch production.

2. Working Principle & Core Performance Comparison

Understanding the technical parameters is crucial for matching equipment to your actual production capacity demands:

3. Ideal Applications & Material Characteristics

Depending on your material—whether it is heat-sensitive, sticky, or requires absolute purity—the ideal equipment choice shifts dramatically:

• The Horizontal Pulverizer's "Home Court":

  Thanks to its exceptional temperature control and continuous classification, the horizontal model is perfect for heat-sensitive, high-purity, and sticky materials. Examples include defatted soy flour, high-value herbal extracts, health supplement raw materials, and mineral additives that require strict heavy-impurity removal.

• The Standard Pulverizer's "Home Court":

  Standard machines are best suited for general-purpose bulk materials that are not strictly sensitive to temperature changes. Examples include standard chemical raw materials, dry agricultural products, and common grains.

4. Maintenance, Cleaning, and Compliance

For pharmaceutical (GMP standards) and food production, equipment cleaning validation is a critical consideration that our engineers at Innov Equipment always prioritize.

• Horizontal Pulverizers often feature a quick-open or clamshell design. Operators can easily open the machine to thoroughly clean the inner chamber without any blind spots, fully complying with food-grade and pharma-grade GMP standards.

• Standard Vertical Pulverizers can be more time-consuming to clean, especially around the bottom of the chamber and dead corners. If your facility frequently switches between different milling materials, this poses a higher risk of cross-contamination.

5. Purchasing & Selection Summary

If you demand the ultimate fineness, continuous large-scale capacity, and process high-value materials (that are sensitive to heat or contamination), investing in a horizontal ultra-micro pulverizer will yield a much higher long-term return on investment.

If your facility only processes standard materials with lower added value, has modest capacity requirements, and operates within a strict budget, a standard ultra-micro pulverizer is perfectly adequate for your daily operations.
