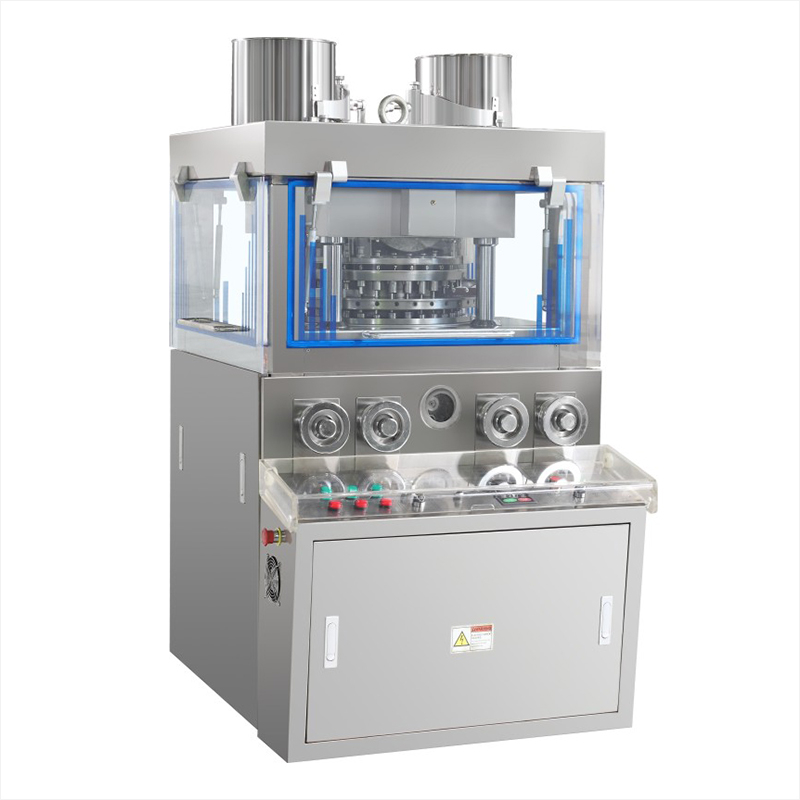

ZPW-29/31
Innov

Machine Introduction
It is mainly used in pharmaceutical companies (chemical, food, electronics, etc.) for prescription tablet production.
We also have continuous rotary multi-punch tablet presses models to help you increase production output or for these special tablet types, and also can be worked with tablet coating machines, blister packing machines, semi-automatic counting machine or fully automatic bottle counting production line for pharmaceutical products.
Machine Features
1. The outer shell is made of stainless steel with a closed design. The inner surface of the tablets is also made of stainless steel to maintain surface gloss, prevent cross-contamination, and meet GMP requirements.
2. Equipped with an acrylic viewing window for easy observation of the tableting process. The side cover can be fully opened for easy cleaning and maintenance. All displays and operating components are in good working order. Power is regulated using a frequency converter. Operation is convenient, rotation is smooth, and safety is reliable.
3. All monitoring devices and operating components are functioning properly.
4. Power is regulated using a variable frequency drive. Operation is convenient, smooth, safe, and reliable.
5. Equipped with an overload protection device. The machine will automatically stop when the pressure is overloaded.
6. Electric combination machine, equipped with touch buttons and screen.
7. The first machine to adopt a semi-automatic lubrication device and install an acrylic dust cover on the upper part of the turntable.
8. The transmission system is sealed in an independent oil tank below the main unit, ensuring no pollution, good heat dissipation, and wear resistance.
9. The powder absorption device can absorb powder in the tablet pressing chamber.
Machine Details



Technical Parameter
Model | ZPW-29 | ZPW-31 |
Dies (sets) | 29 | 31 |
Max. Pressure (KN) | 80 | 80 |
Max. dia. of tablet (mm) | 25 | 22 |
Max. Depth of fill (mm) | 15 | 15 |
Thickness of largest tablet (mm) | 6 | 6 |
Turret speed (r/min) | 14-36 | 14-36 |
Production capacity (pc/h) | 125000 | 135000 |
Motor (kW) | 3-5.5 | 3-5.5 |
Overall dimensions(mm) | 1230*950*1670 | 1230*950*1670 |
Net weight (kg) | 1700 | 1700 |
Moulds Display
