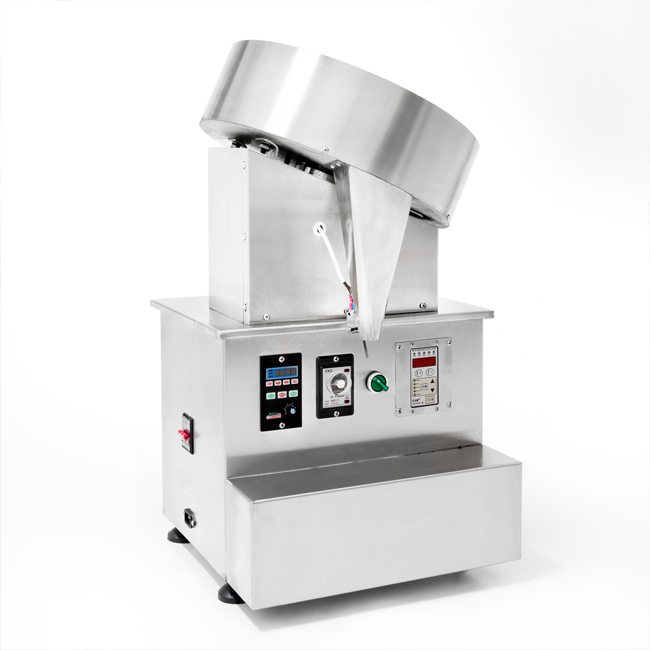

Capsule/Tablet Counting Machine HD-100


Availability:

Quantity:



Inquire Add to Basket

The machine adopts electromagnet for vibration, which is stable and reliable.
Unique design, and it is easy for the operator to check the counting accuracy.
Small in size, light in weight, and is easy to operate. It is applicable to pharmaceutical, hospital, food and other industries.
It is suitable for counting capsules, tablets, and granules.

Model:
HD-100
Brand:
Innov

Counting Machine Tablet counting machine Capsule counting machine Automatic Capsule Counting Machine Automatic Tablet Counting Machine

Product Description

47fc3424fd54a5a6ce2f4c3eb5014f86 2524016b2ac8eba40b523852401a23f0

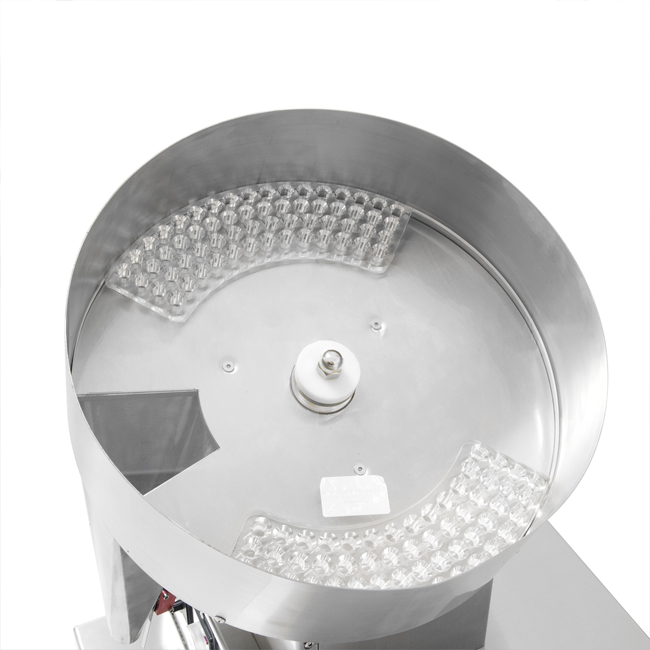

1. Hopper	2. Counting mold	3. Discharging switch

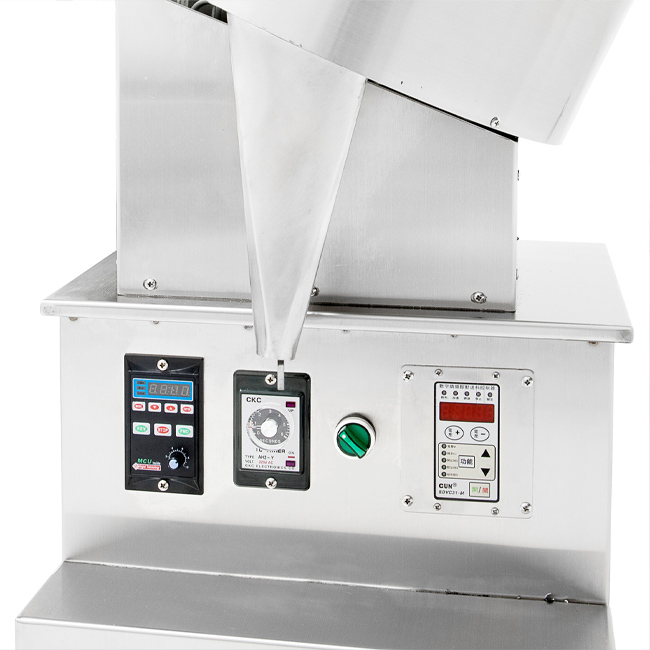

4. Main switch	5. Speed controller	6. Counting mold controller
7. Vibration regulator	8. Wave band	9. Fuse
10. Vibrator switch

Features

1. High performance -- The machine is small in size, light in weight, low in noise, accurate in counting, and easy to operate and maintain.

2. Safe and hygienic – the machine parts contacting with materials are made of 304 stainless steel, and meets the GMP requirements.

3. Wide application -- the ideal equipment for counting, bottling and bagging of capsules, tablets, and granules. The counting mold can be changed based on different materials.

Technical Parameter

Model	HD-100
Applicable materials	Capsules, tablets, soft capsules and items of regular shape
Max counting range	For size 00 capsules, 100 pcs per time, size 0 capsules, 120 pcs per time, and size 1 capsules, 150 pcs per time. For tablets of 6 mm, 150 pcs per time, and for tablets of 8 mm, 100 pcs per time. And the thickness of the tablets shall be 3-20 mm.
Power supply	110V 60Hz / 220V 50Hz
Power	150 W
Machine size (LWH)	420400758mm
Net weight	46 kg
Overall size (LWH)	470490880mm
Gross weight	59 kg
