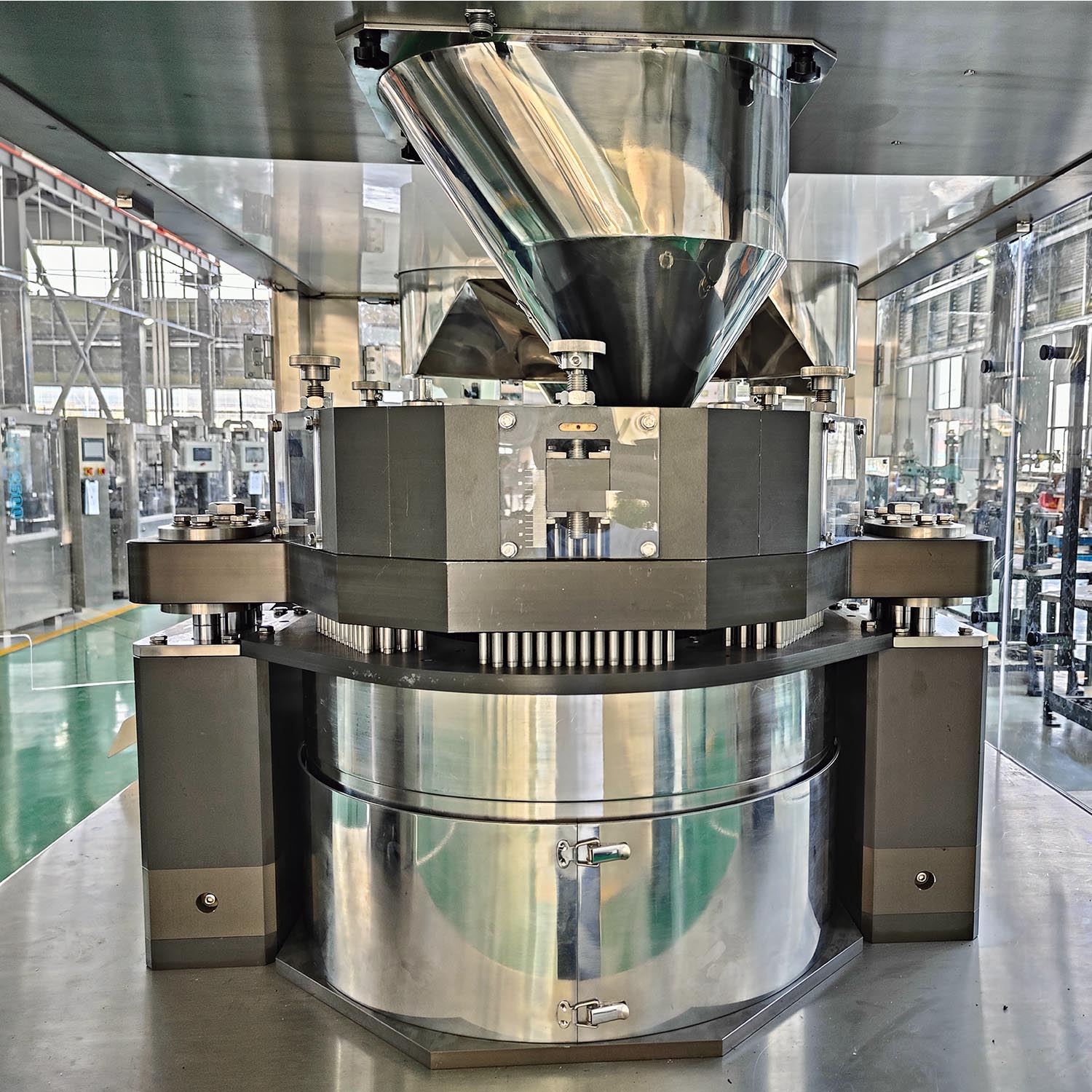

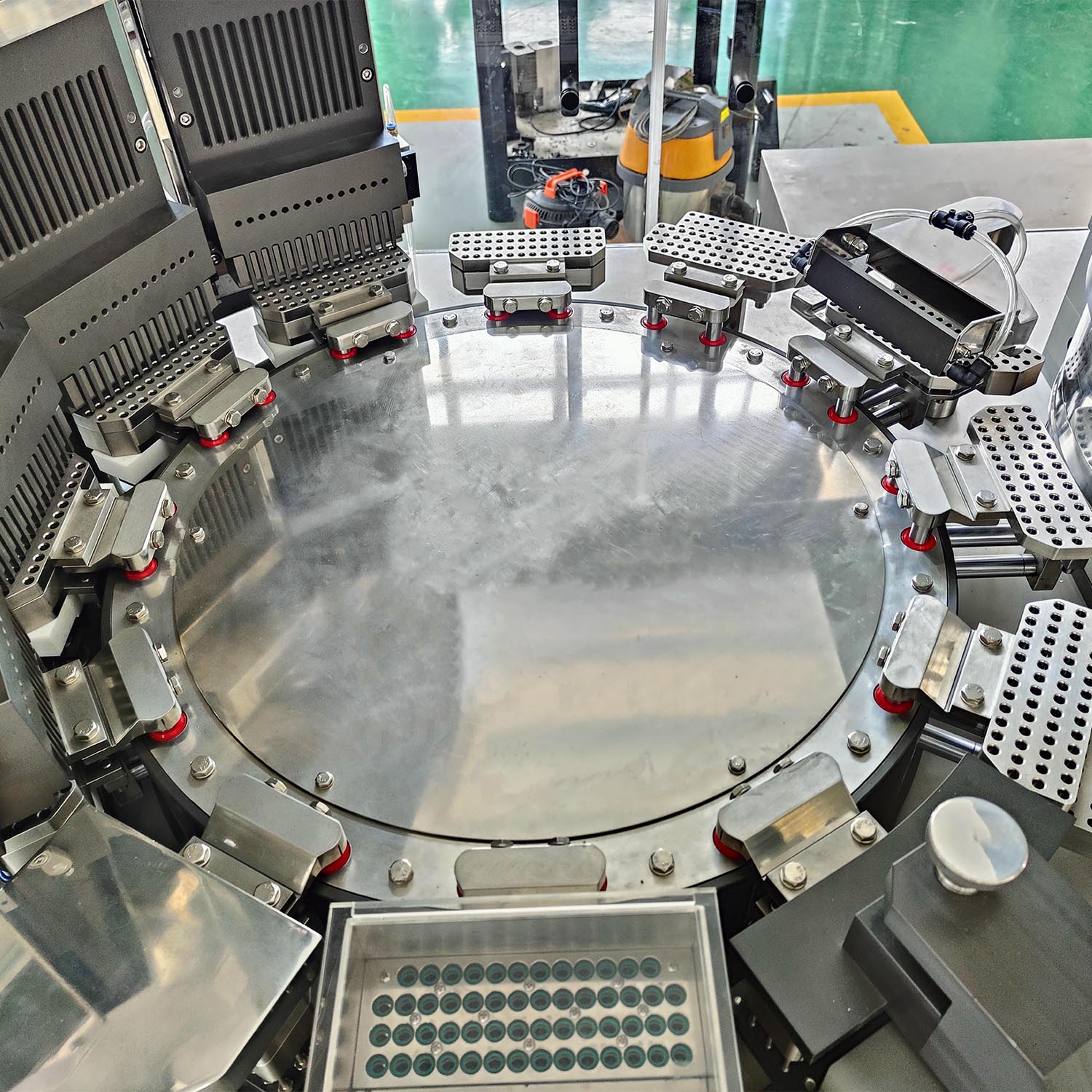

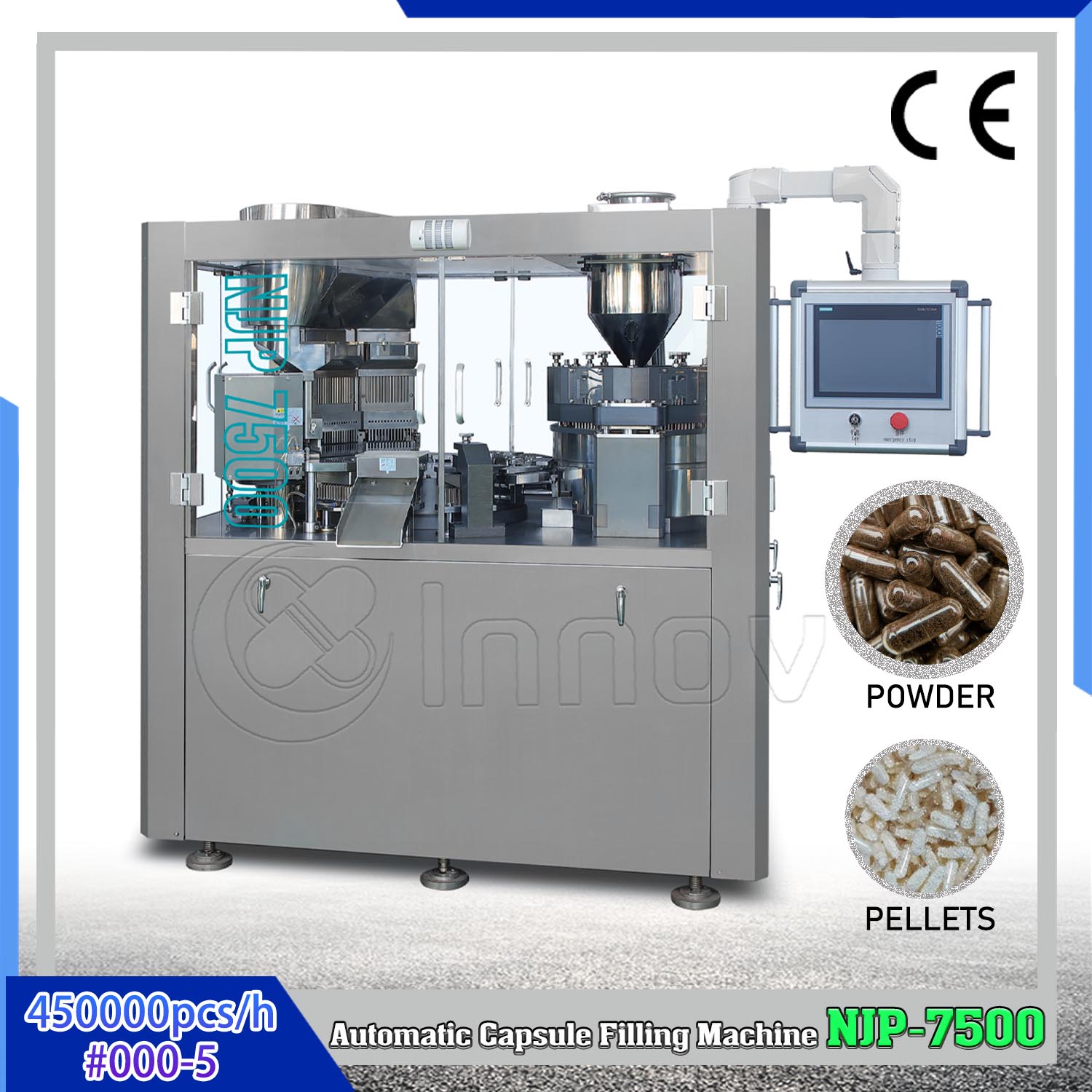

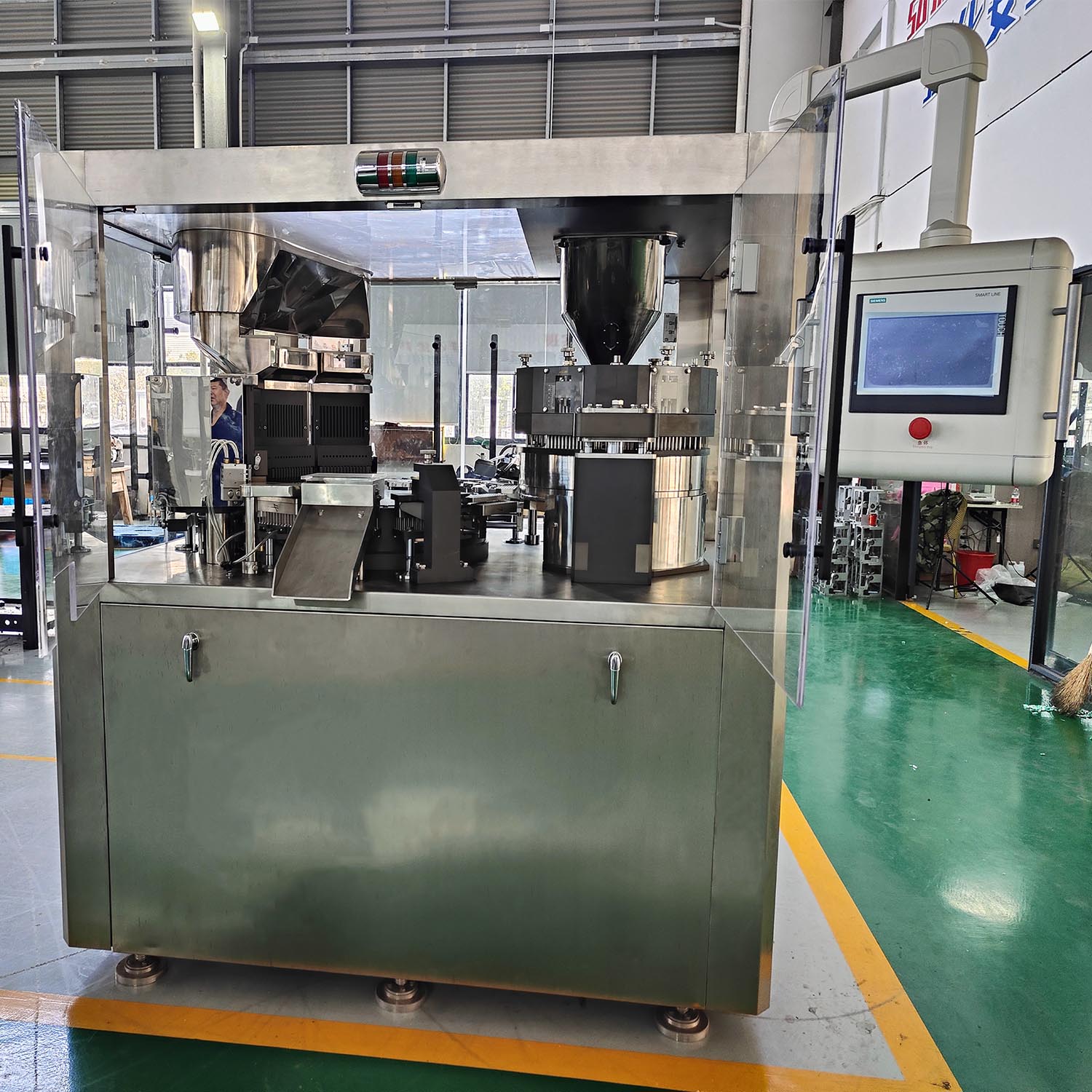

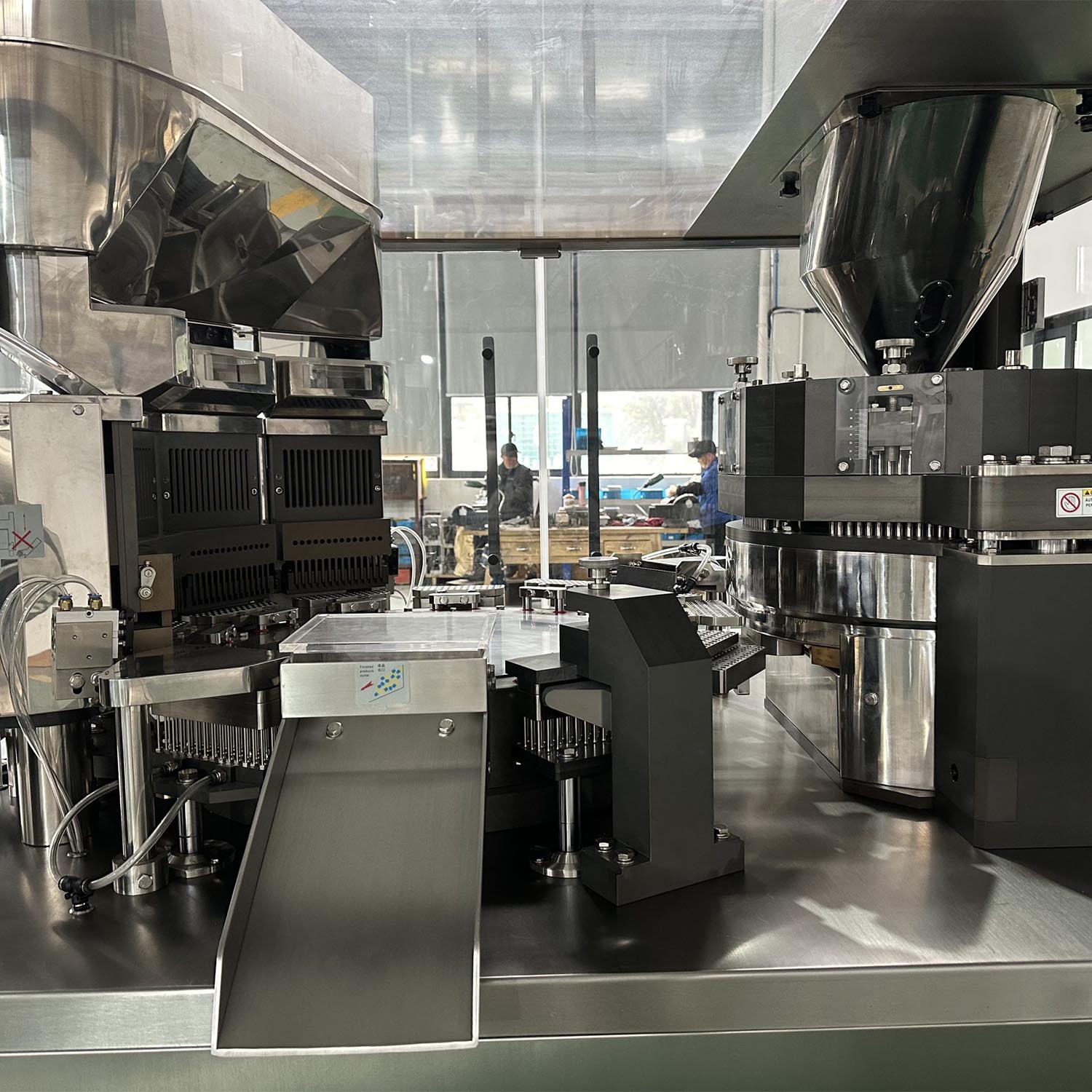

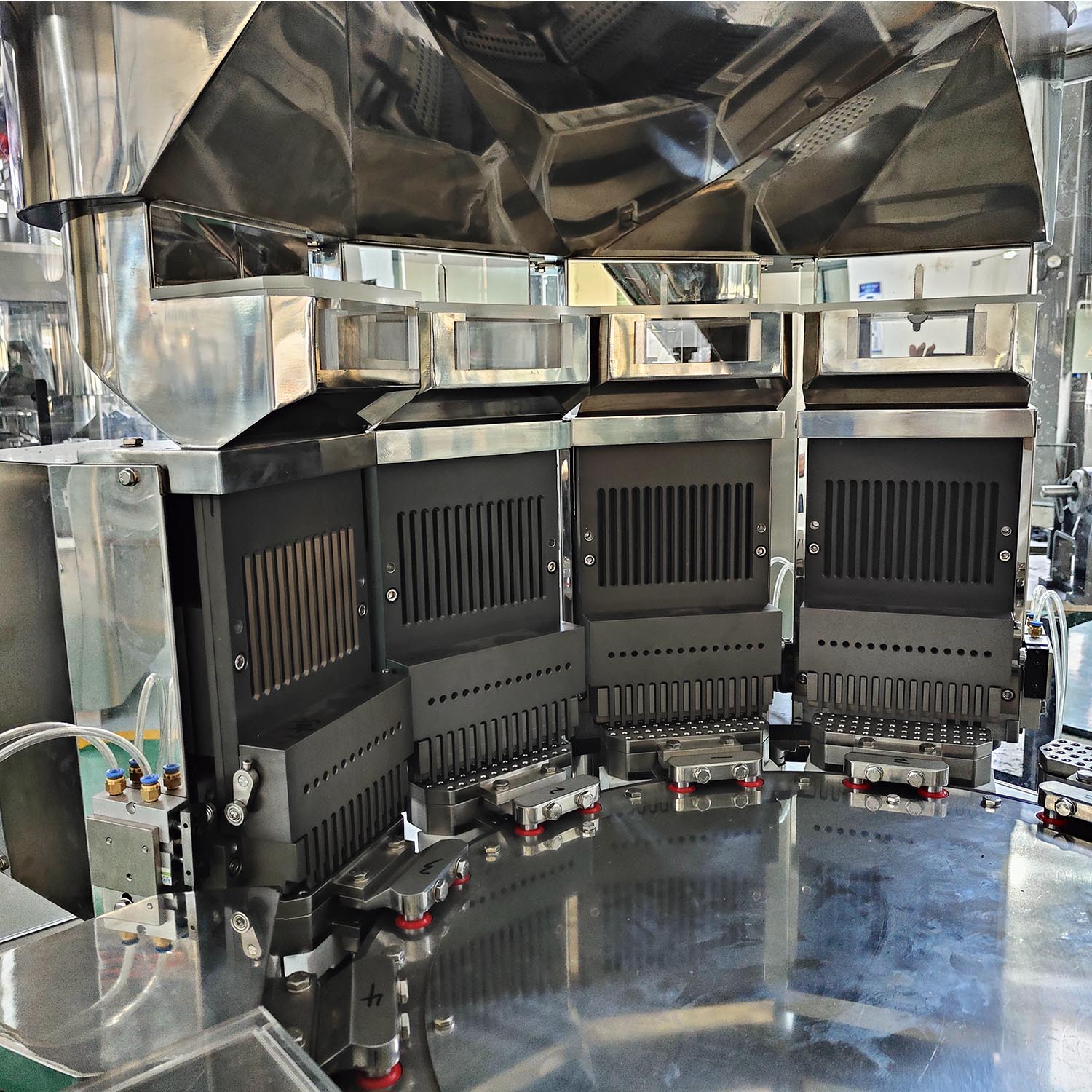

NJP-7500
Innov
1. Precise mechanical structure: adopting Japanese linear bearings and one-piece column chassis, axial runout ≤ 0.02mm, coaxiality deviation within ±0.05mm, life expectancy can be increased by 30%.
2. Multi-hole quantitative feeding, precise dosage (controlled within ±3.5%); capsule qualification rate is as high as 99.6% or more, and can be filled with Chinese and Western medicine. Powder/granules/liquid/large capsules in small capsules/tablets, various combinations of customized solutions is available.
3. GMP compliant design: contacting surface Ra≤0.8μm, module disassembly and assembly fast, cleaning quickly can be completed in 15 minutes.
4. Modular design supports switching between capsule sizes 00# to #5.
5. It adopts PLC control, variable frequency stepless speed regulation, HMI display, easy operation and clear equipment status.
6. Equipped with sensors to monitor the material level of capsules and powders in real time. Filling error ±3-5%.
7. Equipped with safety protection devices for people and machines, with automatic shutdown device for lack of materials, to achieve more stable machine operation, safety and reliability.
8. The standard cam automatic lubrication system reduces maintenance time and improves work efficiency by 20%.
Machine Working Process
Technical parameters
Model | Capacity | Holes | Capsule size | Filling material | Filling rate | Power | Noise | Weight | Oversize | Voltage |
CGN208-D1 | 300 | / | #000-#5 | Powder, Liquid, Pellet, Granule, Mini tablet, Small capsule | =>99% | 4kw | <75dBA | 400kg | 1140*700*1630mm | 1P 220V/3P 380V |
NJP-200 | 200 | 2 | #000-#5 | =>99% | 3.5kw | <75dBA | 700kg | 750x680x1700mm | 1P 220V/3P 380V | |

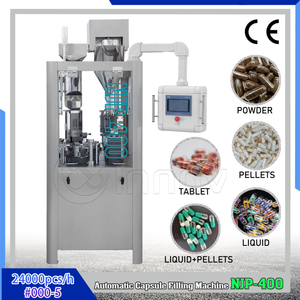

NJP-400 | 400 | 3 | #000-#5 | =>99% | 4kw | <75dBA | 900kg | 760mm(+210)*785mm*1900mm | 1P 220V/3P 380V | |

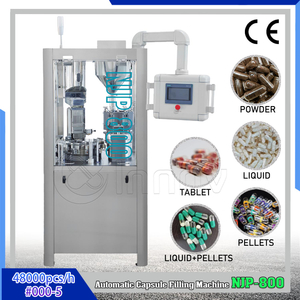

NJP-800 | 800 | 6 | #000-#5 | =>99% | 4.5kw | <75dBA | 1000kg | 840(+339)mm*820(+339)mm*2000mm | 1P 220V/3P 380V | |
NJP-1200 | 1200 | 9 | #000-#5 | =>99% | 5.6kw | <75dBA | 1100kg | 870(+339)*940(+339)*2000mm | 1P 220V/3P 380V | |
NJP-2000 | 2000 | 18 | #000-#5 | =>99% | 7kw | <75dBA | 1500kg | 1500*1040*1970mm, | 3P 380V | |

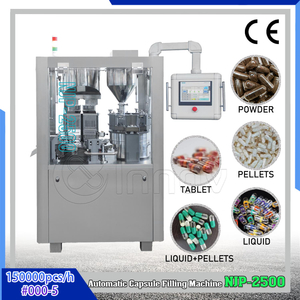

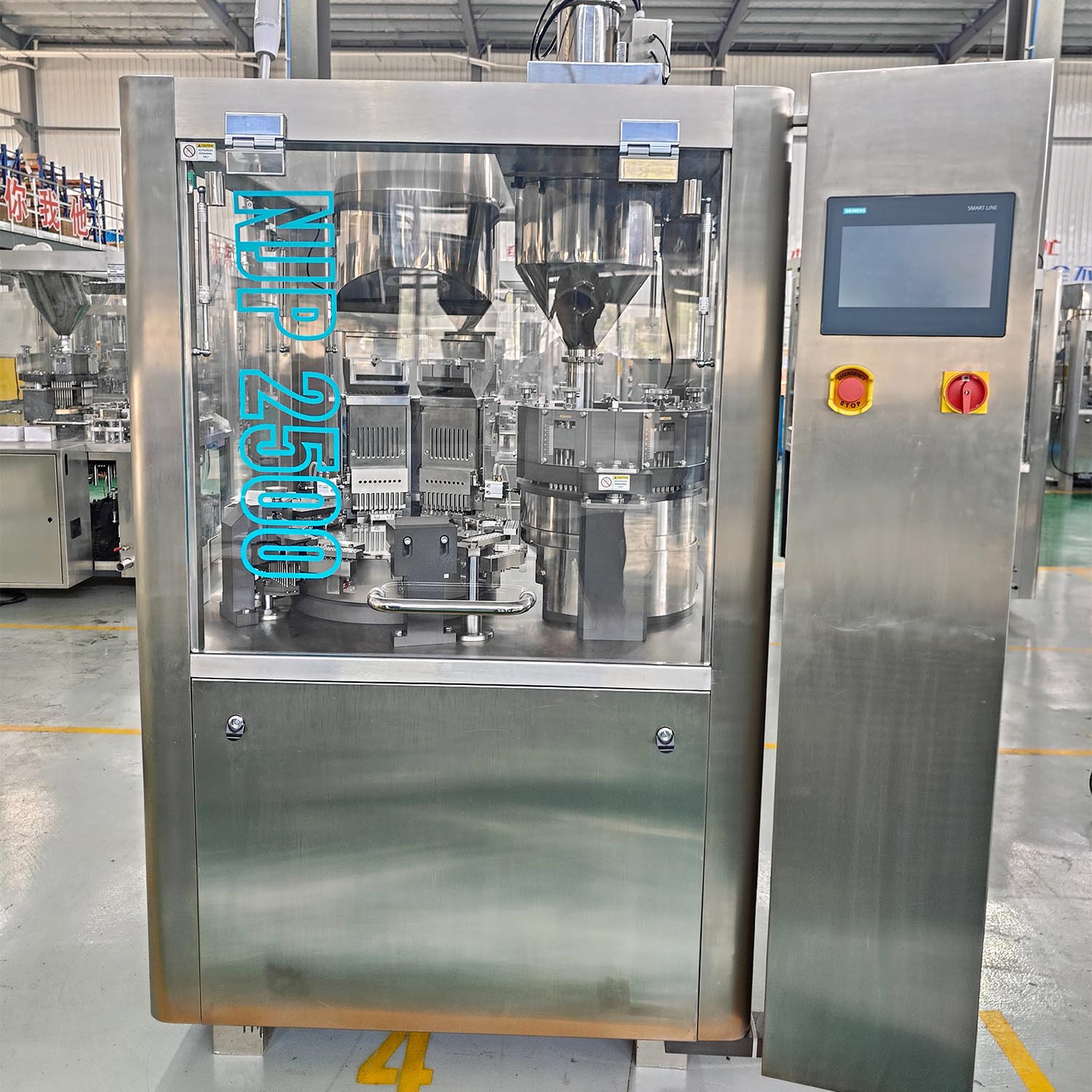

NJP-2500 | 2500 | 18 | #000-#5 | =>99% | 7.5kw | <75dBA | 1500kg | 1010(+346)mm*1070(+346)mm*2035mm | 3P 380V | |
NJP-3500 | 3500 | 25 | #000-#5 | =>99% | 11.5kw | <75dBA | 2200kg | 1435(+550)mm×1248(+280)mm×1960mm | 3P 380V | |

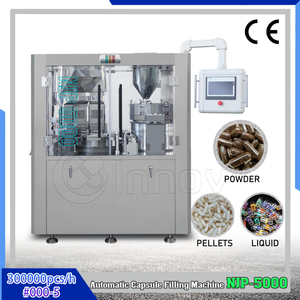

NJP-5000 | 5000 | 36 | #000-#5 | =>99% | 12.5kw | <85dBA | 3500kg | 1605mm*1285mm*2127mm+(60-125)mm | 3P 380V | |
NJP-7500 | 7500 | 54 | #000-#5 | =>99% | 15.5kw | <85dBA | 4500kg | 1885mm*1405mm*2310mm+(50-125)mm | 3P 380V |
