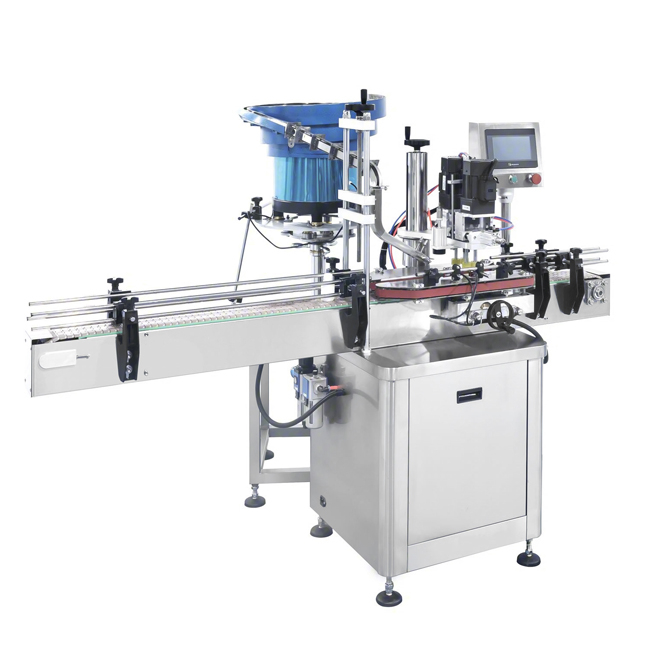

Belt Type Capping Machine HED-DXG


Availability:

Quantity:



Inquire Add to Basket

The Automatic Capping Production Line integrates mechanical transmission technology, electrical drive technology, pneumatic technology, sensor technology, touch screen technology, PLC control, etc., embodying the characteristics of modern manufacturing processes. It is suitable for packaging containers of various sizes and heights.

The Automatic Capping Line consists of a conveyor belt device, pump head capping device, and touch screen device, with a main conveyor belt running through the devices. Each device is a typical electromechanical integration equipment that can work independently. By using network control technology, these devices can be connected into automated, unmanned production equipment.

Model:
HED-DXG
Brand:
Innov

Capping Machine Belt Type Capping Machine Bottle Capping Machine Automatic Capping Machine Capping

Product Description

Components and Principles

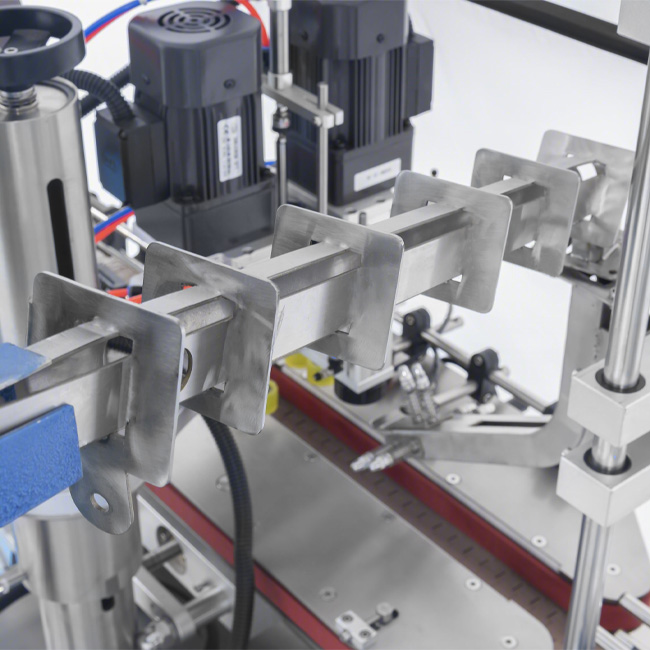

1. Conveyor Belt Device

1) Structure: It consists of stainless steel plate bracket, nylon toothed gear, stainless steel chain plate, padding, guard rail, distribution box, air circuit, etc.

2) Function: This device is responsible for conveying the bottles and adjusting the conveyor speed.

3) Process:

a. Connect the power.

b. Start the conveyor belt drive motor and adjust the running speed of the conveyor belt (refer to the operation panel in the manual).

c. Start the air compressor to supply air to each unit.

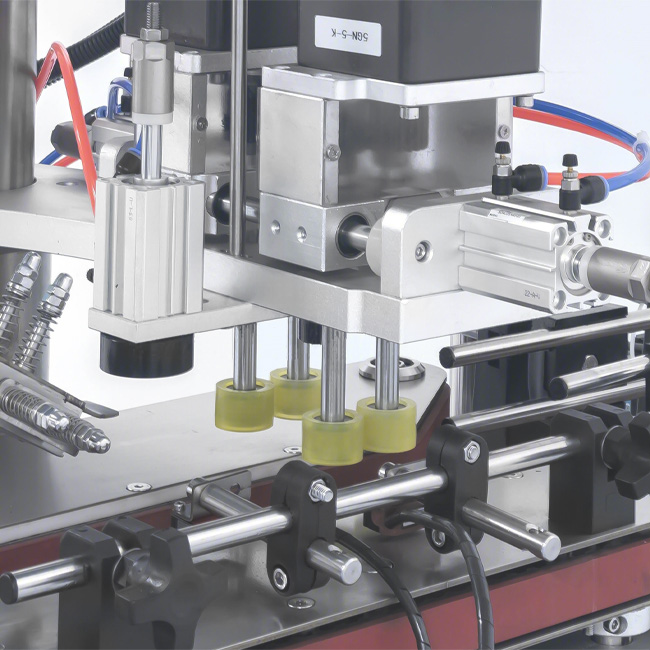

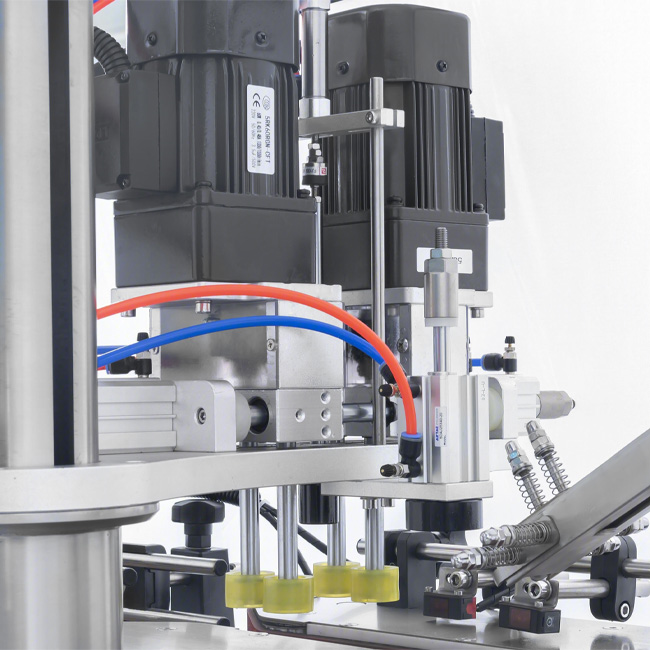

2. Capping Device

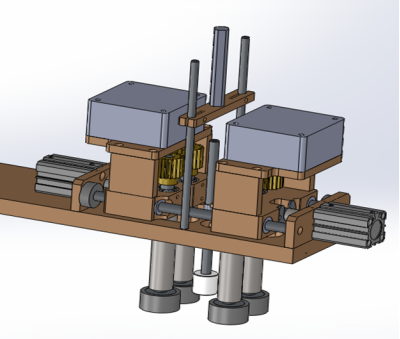

59f122e161acaeac9aaafe5c5a3e8a66

1) Structure: The device consists of a motor, cylinder, adjustment plate, capping head, and pressing head.

2) Function: This device automatically tightens the container caps.

3) Process:

a. The cylinder automatically extends and positions the rotating head correctly.

b. The motor rotates the capping head to tighten the caps.

3. Control Device

This device is controlled by a touch screen (refer to the operation panel in the manual).

Machine Parameters

Model	HED-DXG
Voltage	220V 50/60Hz
Power Consumption	600~1100W (slightly different due to customization)
Drive Mode	Variable-speed motor
Pneumatic Components	AIRTIC
Capping Speed	15-30 bottles/min
Required Air Compressor	1.5kW 65L (both electrical and air supply needed)
Overall Dimensions	2350×950×1700mm
Total Weight	268kg (excluding vibrating disk)
