Overview of empty capsule shell production process

Empy capsule shells are a common form of pharmaceutical packaging, primarily designed to protect medications and ensure their effective release in the human body. The manufacturing process involves multiple precise steps, each significantly impacting the final product's quality. In the pharmaceutical industry, producing these shells requires not only precision and consistency but also strict adherence to quality control standards, ensuring both safety and efficacy of the final product.

1. Production Process Overview

The production of empty capsules is a complex and meticulous process designed to manufacture high-quality capsules that meet pharmaceutical standards. The entire production workflow encompasses multiple critical stages: raw material preparation, melting and coloring, molding and drying, cutting and trimming, quality inspection, label printing, and packaging. Each step plays a vital role in ensuring both the quality of the capsule shells and the efficacy of the medication. Below are the key steps in the production of empty capsules.

2. Key production steps

2.1 Raw material preparation

The first step in manufacturing production-grade capsule shells is raw material preparation. The primary ingredient is gelatin, typically derived from animal collagen. Alongside gelatin, purified water, colorants, and auxiliary materials (such as plasticizers) are essential components in the production process. These materials undergo rigorous screening and processing to ensure compliance with pharmaceutical industry standards.

Key considerations: The quality of raw materials and regulatory compliance are the most important considerations in the production process.

2.2 Melting and coloring

After preparing the raw materials, the next step involves melting and coloring the gelatin. First, heat the gelatin in a heating tank until it dissolves completely into a uniform solution. Then, add an appropriate amount of purified water to create a viscous liquid. To ensure consistent capsule appearance, colorants are added to the solution to achieve the desired coloration.

Key considerations: Temperature control is critical, as excessive temperatures may lead to degradation of gelatin properties, and the avoidance of bubble formation is also important.

2.3 Formation and drying

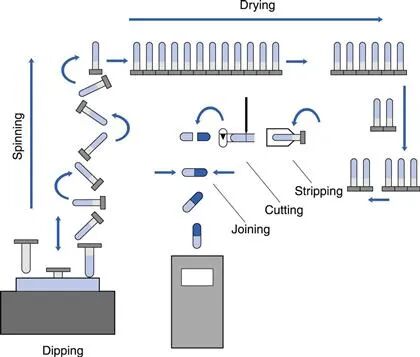

After the gelatin solution completes melting and coloring, the process proceeds to forming and drying stages. Stainless steel forming needles are then immersed in the gelatin solution to create capsule shells through impregnation. The coated needles rotate to ensure uniform coating of the capsule shells while removing excess solution. Once formed, the capsules are transferred to a drying chamber where they undergo controlled temperature and humidity drying to ensure the shell's hardness and stability.

Key considerations: Drying conditions must be strictly controlled, as excessive humidity or temperature may affect capsule quality and lead to uneven surface or insufficient hardness of capsules.

2.4 Cutting and finishing

After the capsule shell is dried, it undergoes cutting and trimming to ensure precise dimensions and shape. Using precision cutting tools, each capsule is trimmed to maintain neat edges and uniform size. This critical step is essential for subsequent filling operations, as inconsistent capsule sizes may lead to inaccurate medication filling, potentially affecting both dosage accuracy and therapeutic effectiveness.

Key considerations: The accuracy of cutting tools directly affects the shape and quality of capsules, and the repaired capsules should meet the uniform standards.

2.5 Quality Inspection

Capsule quality inspection is a critical step in ensuring product compliance. All capsules undergo rigorous checks, including visual and machine inspections, to detect defects such as bubbles, black spots, irregular shapes, and double capsules. Modern capsule inspection equipment and image processing technologies are frequently employed to enhance inspection accuracy.

Key considerations: Only capsules that pass quality inspection can go to the next stage, and those that do not pass inspection are returned for reprocessing or discarded.

2.6 Print ID

During capsule production, the printing process is used to label drug information on the capsule surface, such as the drug name, dosage, and manufacturer. This not only helps distinguish different drugs but also ensures that the drug labels comply with regulations. The ink used is edible and does not affect the quality of the drugs.

Key considerations: Print information must be clear and accurate to ensure that patients can correctly identify the medication and avoid accidental ingestion.

2.7 Packaging and storage

Once production is complete, the capsules undergo final packaging and storage. They are counted and packed into bottles or blister packs to protect them from environmental factors like moisture and light. The packaging also contains important drug information, such as batch number and expiration date.

Key considerations: The packaging must ensure that the capsules are not damaged during storage and transportation and comply with the storage requirements of the drug.

3. Quality control and regulatory requirements

The production of empty capsule shells must strictly comply with Good Manufacturing Practice (GMP) and relevant regulatory requirements. Every manufacturing stage requires rigorous quality control, from raw material procurement and production process monitoring to final product inspection, ensuring all phases meet safety and efficacy standards. Additionally, regular quality audits and compliance checks are crucial for maintaining production stability and ensuring product quality compliance.

4. Concluding remarks

The production of empty capsule shells constitutes a sophisticated and intricate system engineering process. Each stage requires precise operational procedures and rigorous quality control to ensure product safety and efficacy. With continuous advancements in pharmaceutical technology, manufacturing processes for these capsules are being optimized. Manufacturers must stay compliant with industry standards and regulatory requirements while enhancing production efficiency and product quality, thereby guaranteeing patients can access medications safely and effectively.

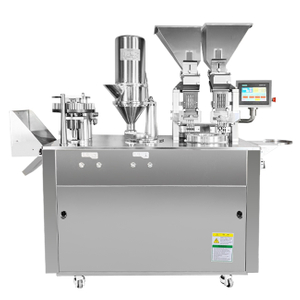

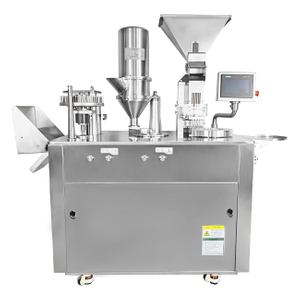

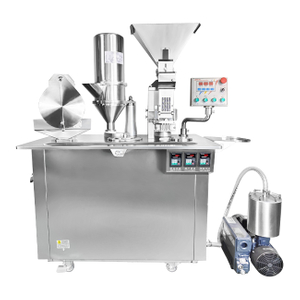

Achieve high efficiency and automation using our fully automatic capsule filling machine and semi-automatic capsule filling machine.
