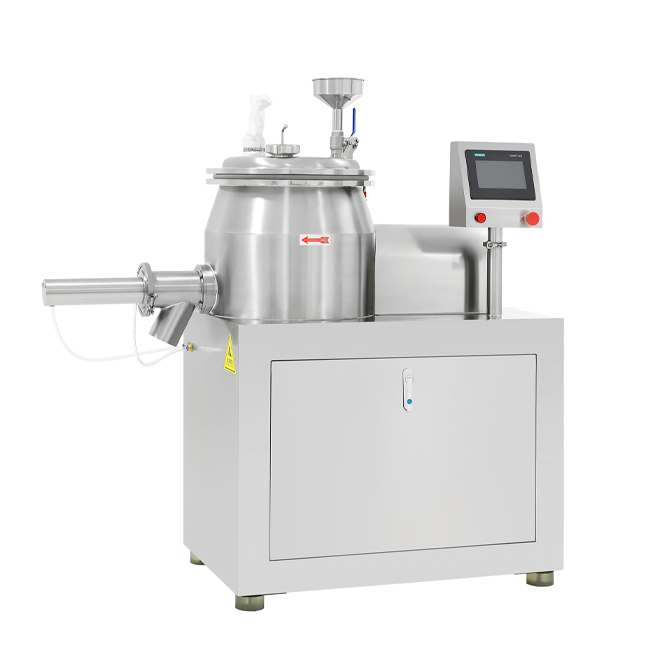

Several formulations are added to the working container at once, mixed by stirring, and then the adhesive is automatically injected. Alternatively, one formulation and the adhesive are added to the working container at once, mixed into a soft material, and then cut into granules.
Both mixing and cutting are carried out by dual-speed motors, so controlling the solubility of the adhesive, the mixing and cutting speeds, and time can achieve higher quality. With the same production process, the quality of each batch of granules is ensured.
Model Item | WDL-50 | WDL-100 | WDL-200 | WDL-250 | WDL-300 | |
Working Volume | L | 15-35 | 30-70 | 60-140 | 80-175 | 90-210 |
Total Volume | L | 50 | 100 | 200 | 250 | 300 |
Granulation Time | min/batch | 7-10 | ||||
Mixing Power | kW | 4/4.5 | 6.5/8 | 9-11 | 11/15 | 13/16 |
Cutting Rate | kW | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 |
Mixing Speed | r/min | 200/400 | 240/360 | 180/270 | 180/270 | 180/270 |
Cutting Speed | r/min | 1500-3000 | ||||
Weight | kg | 450 | 900 | 1300 | 1350 | 1800 |
