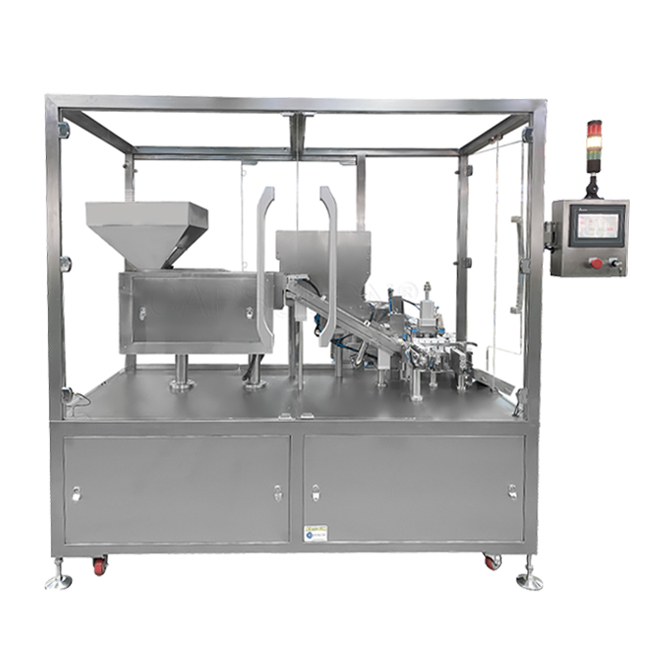

HED-40
Innov
Components and Functions
1. Cap Feeding Oscillating Plate: Manually place caps into the oscillating plate, which automatically feeds them in the desired direction to the fixed capping position.

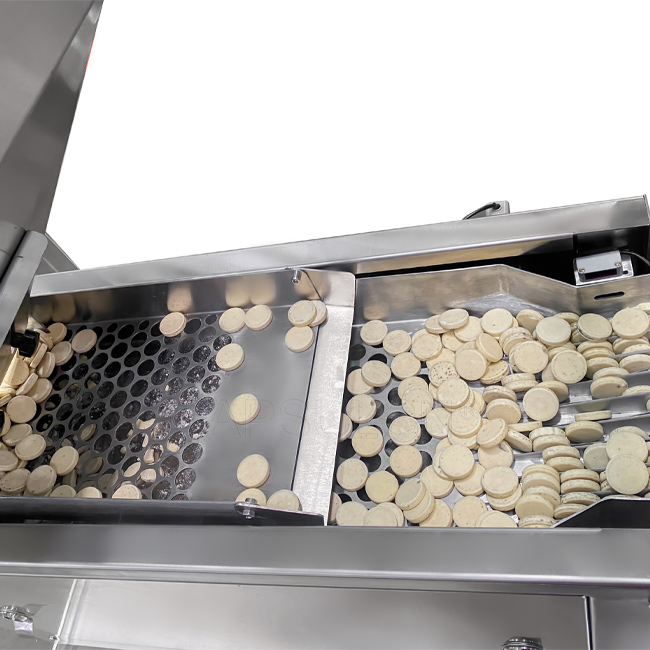

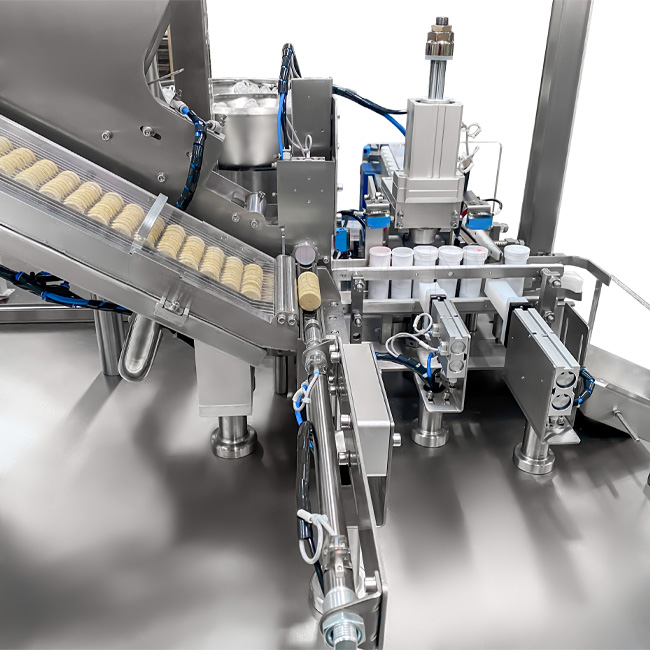

2. Tablet Feeding and Bottle Feeding: Manually place tablets into the tablet hopper. The machine automatically rolls and arranges the tablets onto each track and automatically delivers them to the loading position. When a bottle is detected at the loading position, the tablet feeding cylinder automatically feeds the tablets into the bottle.

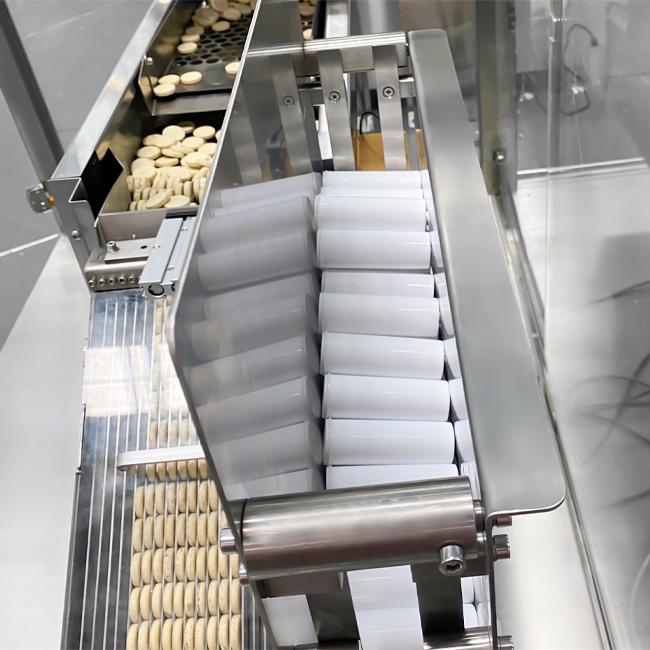

3. Bottle Loading: Manually place bottles into the bottle hopper in the same direction. The machine automatically arranges the bottles and feeds them to the loading position.

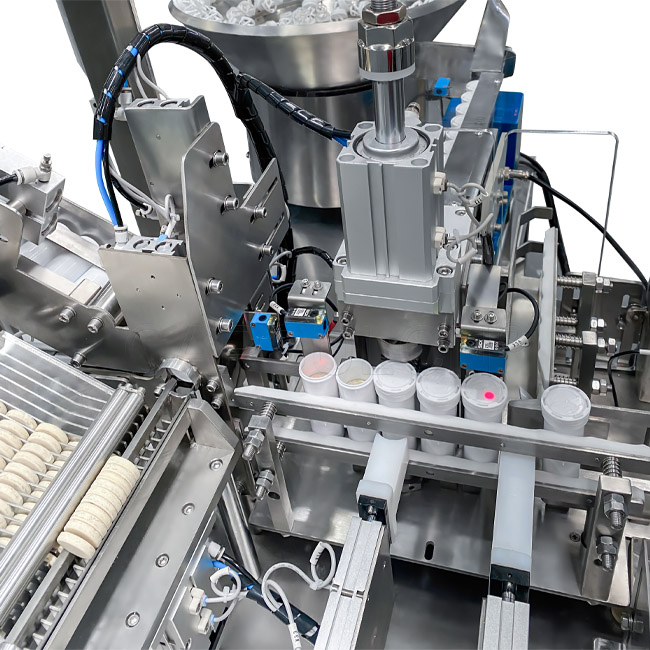

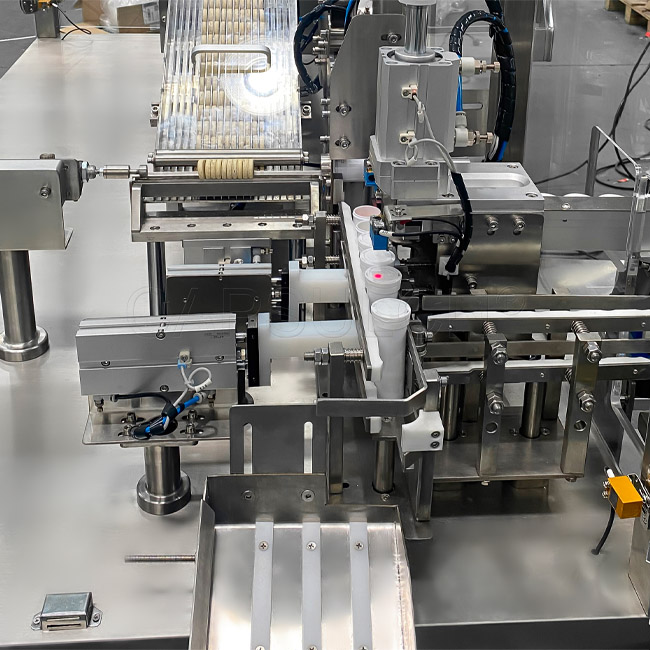

4. Capping: When a bottle is detected with tablets, the capping system automatically presses the cap into the bottle opening. Bottles with no tablets or insufficient tablets will not be capped, and uncapped bottles will be automatically rejected.
5. Electronic Control: The entire operation of the machine is controlled by a PLC and executed automatically in a sequential manner. If a package is missing, an alarm will be automatically triggered and the machine will shut down after a certain delay.
Product Advantages:
(1) The device is designed to fill tablets into tubes in layers and then place bottle caps on top.
(2) Tube feeder.
(3) Tablet channel counting. Accurate counting.
(4) No tubes, no filling;
(5) Automatic vibrating bowl (capping) for stoppers.
(6) Automatic capping.
(7) Automatic detection of insufficient tablets in bottles and fault alarm.
(8) High degree of intelligence, with multiple detection and alarm control functions such as fault self-diagnosis.
(9) Easy to replace bottle tubes and remove accessories, convenient and quick.
(10) Touch screen control panel, which can store variety parameters, making adjustment and use particularly convenient.
Technical Parameters
Model | HED-40 |
Output | 20-40 bottles/minute (customizable depending on bottle size) |
Voltage | 220V/50Hz |
Compressed Air | 0.5~0.6MP |
Flow | 0.28m/3minute |
Application | Effervescent tablets in tube bottles, capping, cooling tablets in tube bottles, and similar packaging (customizable) |
Overall Dimensions | 2400mm*1600mm*1800mm (specifications subject to current machine) |
Weight | 480kg (specifications subject to current machine) |
