ZP-23/25
Innov

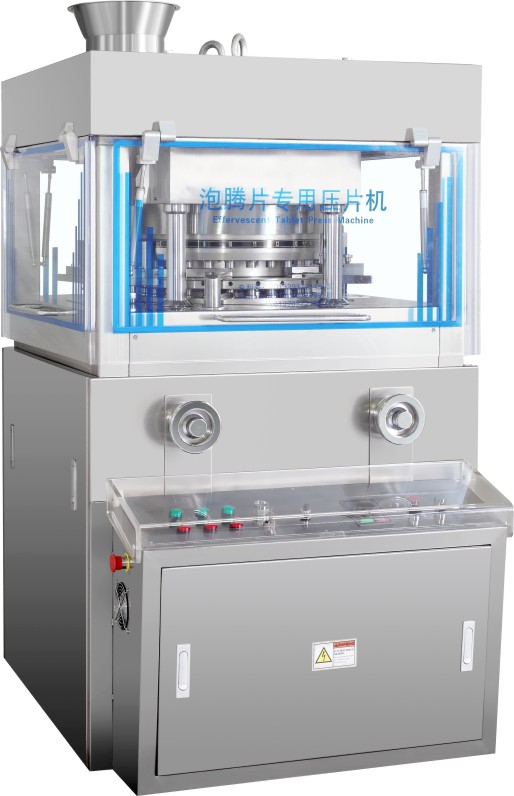

Machine Introduction
This machine uses a special way for solving the problems of demoulding difficultly, such as strong stickiness, poor mobility, easy to damp, high humidity and so on. It is the best choice for suppressing in the high humidity environment. The upper and lower punch rotating to get rid of bonding dust.
We also have continuous rotary multi-punch tablet presses models to help you increase production output or for these special tablet types, and also can be worked with tablet coating machines, blister packing machines, semi-automatic counting machine or fully automatic bottle counting production line for pharmaceutical products.
Machine Details
Technical Parameter
Model | ZP-23 | ZP-25 |
Dies(sets) | 23 | 25 |
Max.dia.of tablet（mm） | 25 | 22 |
Maximum.output:（pc/min） | 27000 | 30000 |
Maximum pressure（kn） | 80 | 80 |
Max.Depth of fill（mm） | 10-25 | 10-25 |
Thickness of largest tablet（mm） | 3-11 | 3-11 |
Motor（kw） | 5.5 | |
Overall size（mm） | 1230*950*1800 | |
Net weight（kg） | 2000 | |
Moulds Display
