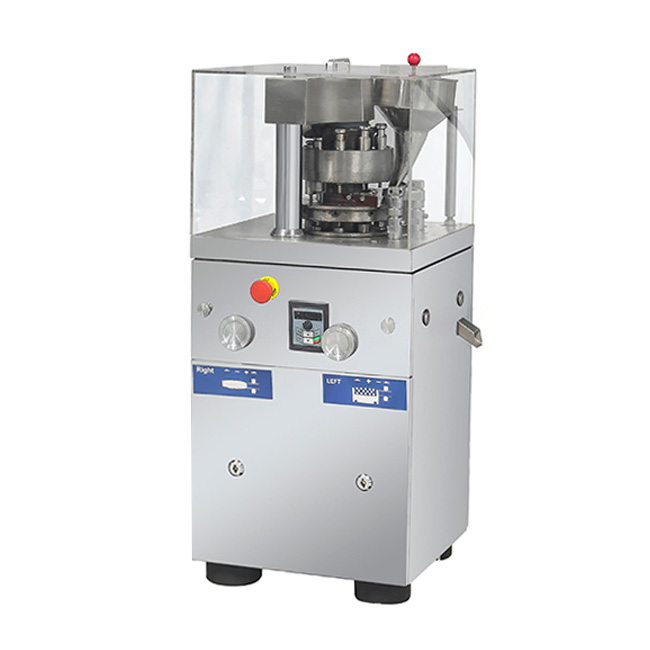

Machine Introduction
This is a small tablet press suitable for small-batch production. It is the preferred equipment for determining whether granular raw materials can be compressed into tablets. Within the machine's pressure range, granular raw materials with a powder content of less than 10% can be compressed into round, irregularly shaped, and labeled tablets with a diameter of 4-12mm. It is mainly used in tablet production in the pharmaceutical industry, but can also be applied in the chemical, food, and electronics industries.
We also have continuous rotary multi-punch tablet presses models to help you increase production output or for these special tablet types, and also can be worked with tablet coating machines, blister packing machines, semi-automatic counting machine or fully automatic bottle counting production line for pharmaceutical products.

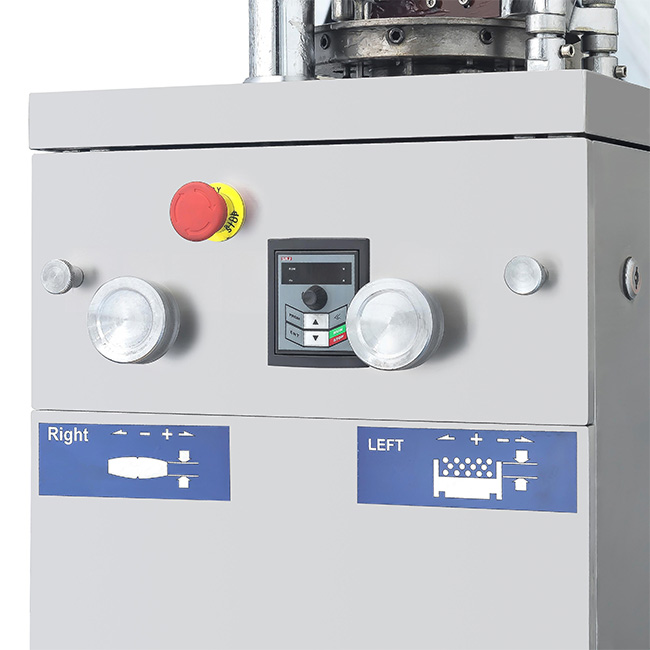

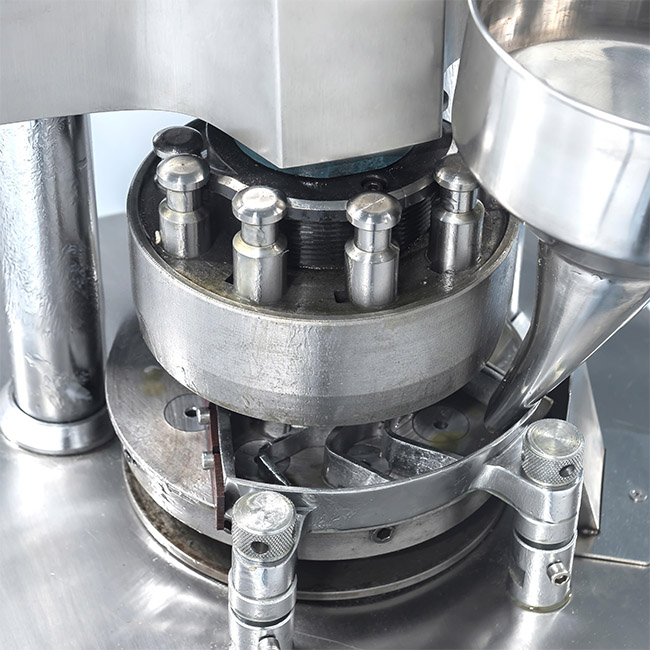

Machine Details
Technical Parameter
Model | ZP-9 |
Punch quantity (set) | 9 |
Max. tablet pressure (kN) | 40 |
Max. tablet diameter (mm) | 12 |
Max. tablet thickness (mm) | 6 |
Max. filling depth (mm) | 15 |
Max. production capacity (pc/h) | 21,600 |
Turntable working diameter (mm) | 200 |
Turntable speed (r/min) | 0~40 |
Diameter of middle punch (mm) | 26 |
Height of middle punch (mm) | 22 |
Diameter of upper and lower punch (mm) | 22 |
Length of upper and lower punch (mm) | 115 |
Overall dimension (mm) | 475*465*1030 |
Machine weight (kg) | 230 |
Motor power (kW) | 1.5 |
Voltage (V) | 220 |
Moulds Display
