Machine body

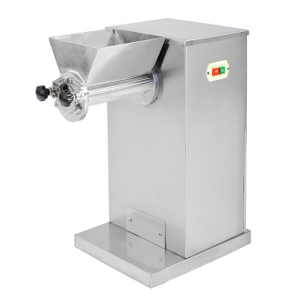

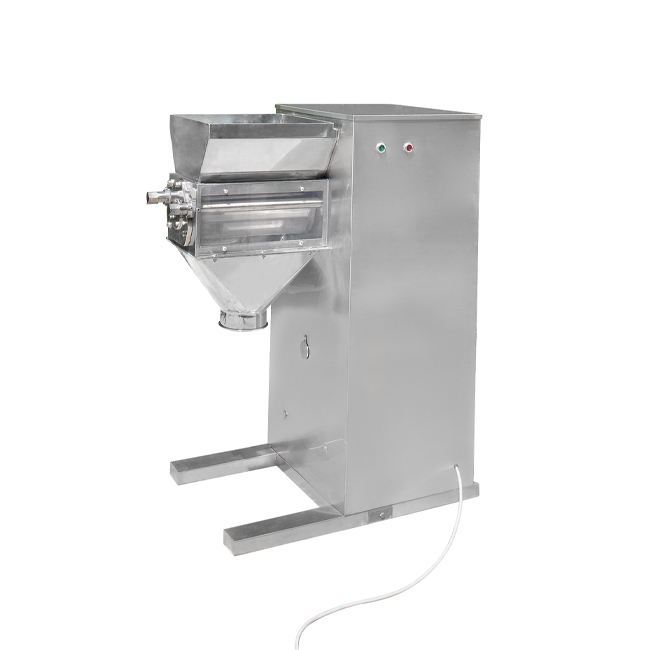

The machine body is an independent cuboid, which is composed of bearing support, speed reduction gearbox and machine base. The feeding hopper is connected with the bearing support. The front end of the machine is designed to be rectangular. It can be placed in the room directly without installation.

Granule manufacturing device

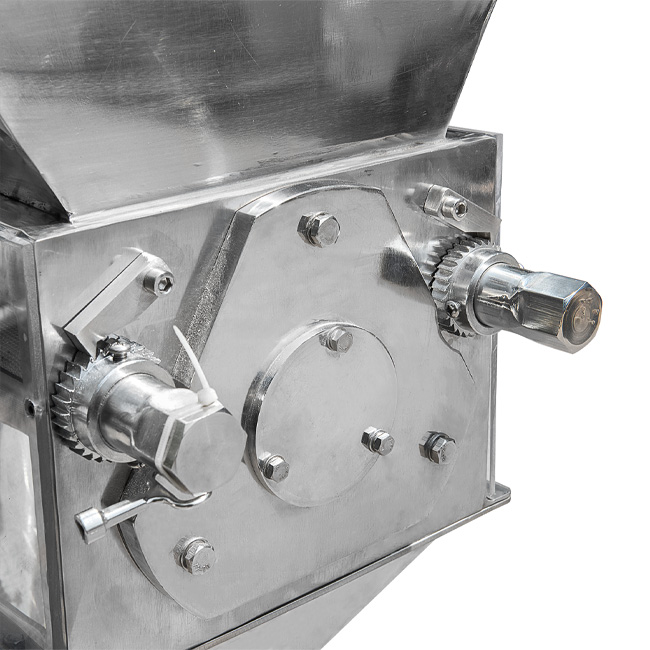

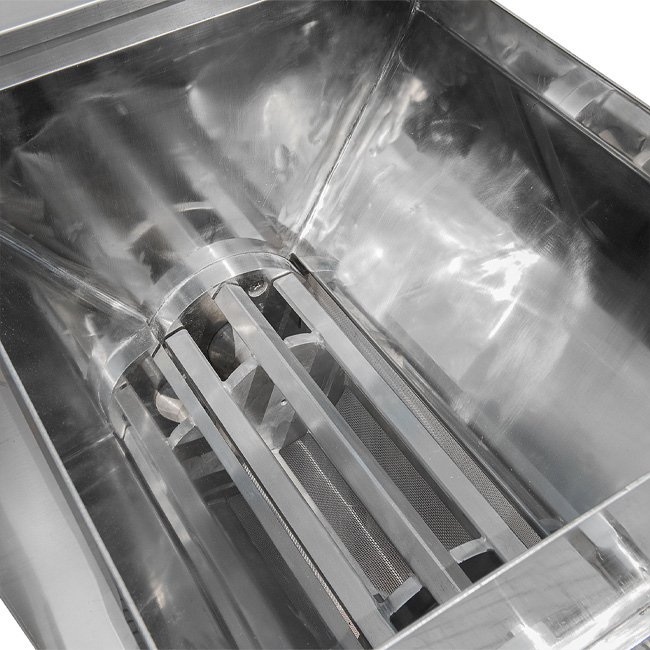

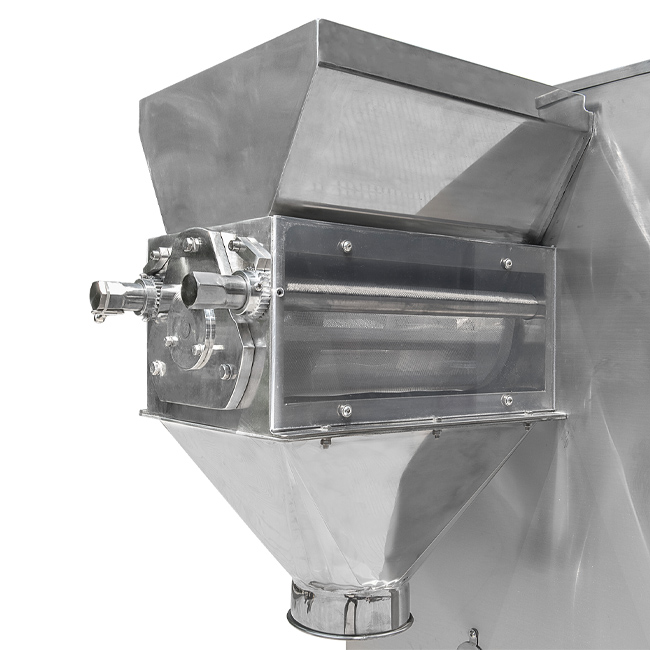

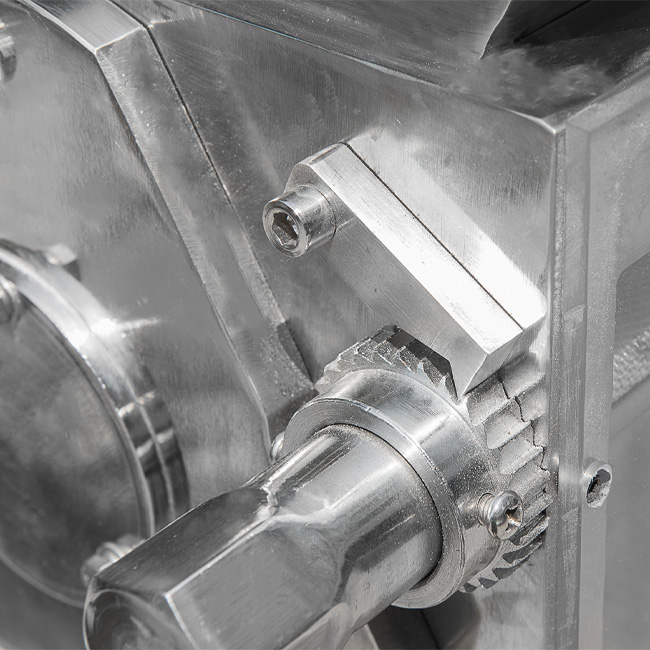

The rotary roller is just below the hopper, and there are bearing supports at the front and rear. It is driven by the rack to rotate clockwise and then anticlockwise at regular intervals. The front bearing seat on the end face is movable. Simply by unscrewing three screws on the seat, the front bearing seat and the rotary roller can be pulled out in turn. The outlet of the hopper is in the form of square and the hopper has view windows on both sides to facilitate the observation and collection of finished granules

Clamping tubes of screen mesh

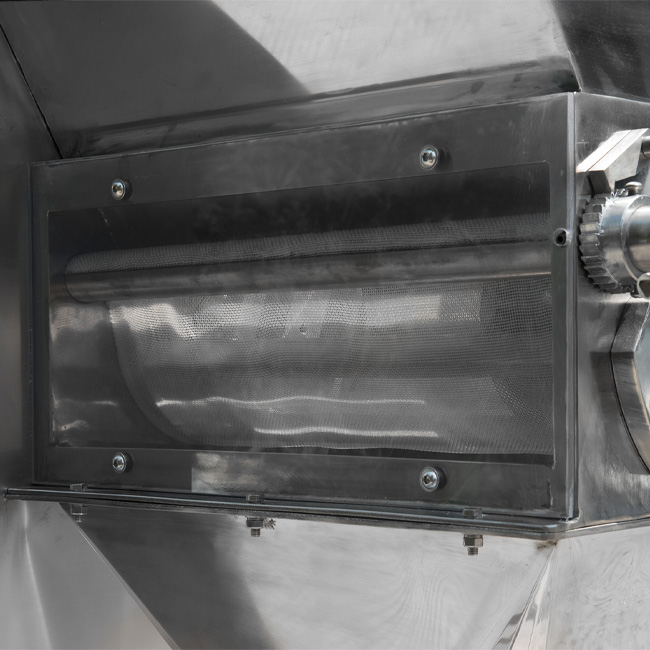

They are made of stainless-steel tubes and installed on both sides of the rotary roller. There is a long groove in the middle. The two ends of the screen mesh are embedded in the groove. Rotate the handle to wrap the screen mesh on the outer circle of the rotary roller. The ratchet is used to support the hand wheel. The tightness can be adjusted.

Reduction gearbox

It utilizes worm drive. Its speed ratio is 1: 25.5. Machine oil can be stored in the box to ensure the good lubrication and no noise of gear rod, gear and worm gear. At the outer end of the worm gear, there is an eccentric rod to drive the gear rod to make reciprocating motion, and the gear shaft meshed with the gear rod rotates clockwise and then anticlockwise at regular intervals.
